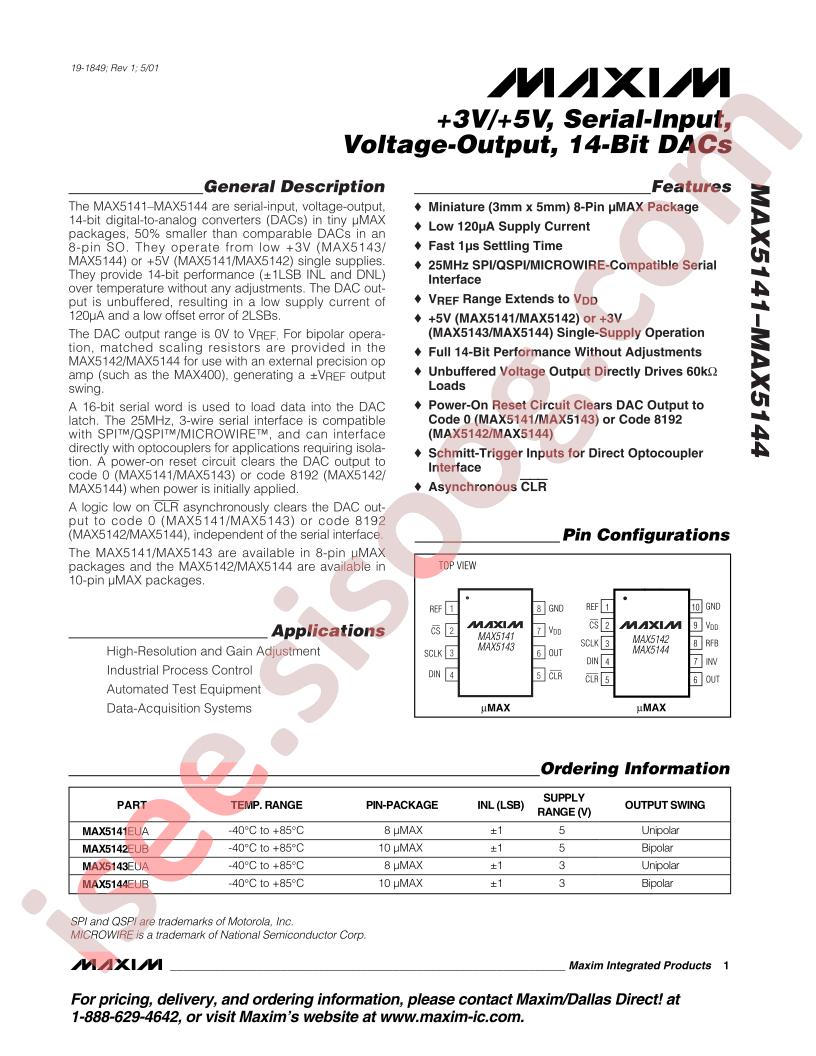

MAX5141EUA+T دیتاشیت

MAX5141EUA+T

مشخصات دیتاشیت

نام دیتاشیت MAX5141EUA+T
حجم فایل 101.575 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت MAX5141EUA+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX5141-44 12 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX5141EUA+T
  • Interface: SPI
  • Resolution: 14Bit
  • Output Type: Voltage-非缓冲
  • Settling Time: 1us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±0.5LSB
  • Operating Temperature: -40°C~+85°C
  • Package: UMAX-8
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Mounting Type: Surface Mount
  • Number of D/A Converters: 1
  • Data Interface: SPI
  • Voltage - Supply, Digital: 5V
  • Reference Type: External
  • Number of Bits: 14
  • Part Status: Active
  • INL/DNL (LSB): ±0.5, ±0.5
  • Differential Output: No
  • Series: -
  • Voltage - Supply, Analog: 5V
  • Base Part Number: MAX5141
  • Supplier Device Package: 8-uMAX
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Packaging: Tube
  • Architecture: R-2R
  • detail: 14 Bit Digital to Analog Converter 1 8-uMAX
