LTC3612EFE#PBF دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LTC3612EFE#PBF	دانلود دیتاشیت

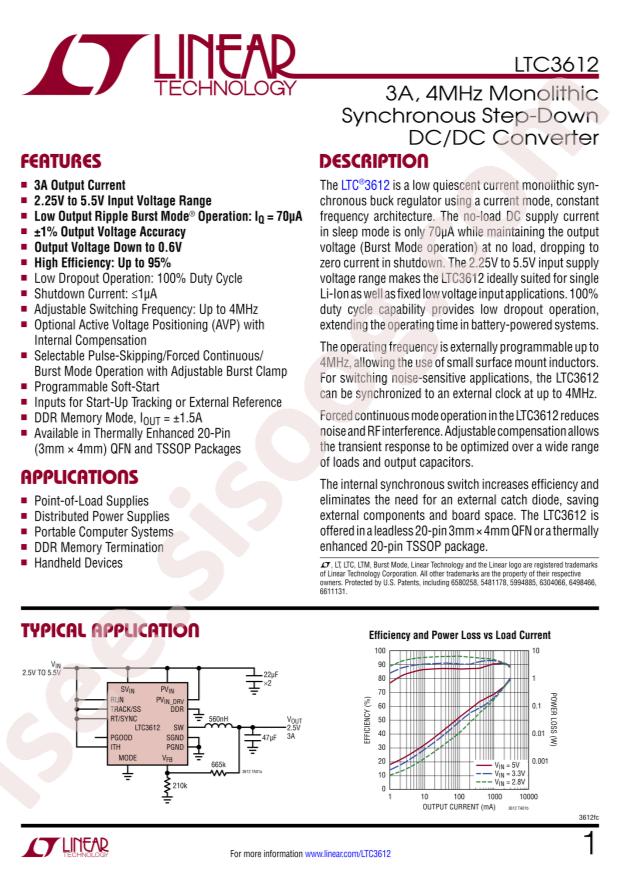

LTC3612 30 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices LTC3612EFE#PBF
Output Type: Adjustable
Input Voltage: 2.25V~5.5V
Output Voltage: 0.6V~5.5V
Number of Outputs: 1
Switching Frequency: 4MHz
Output Current (Max): 3A
Operating Temperature: -55°C~+150°C@(TJ)
Synchronous Rectification: Yes
Package: TSSOP-20-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.25V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.6V
Voltage - Output (Max): 5.5V
Current - Output: 3A
Frequency - Switching: 300kHz ~ 4MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 20-TSSOP-EP
Base Part Number: LTC3612
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
