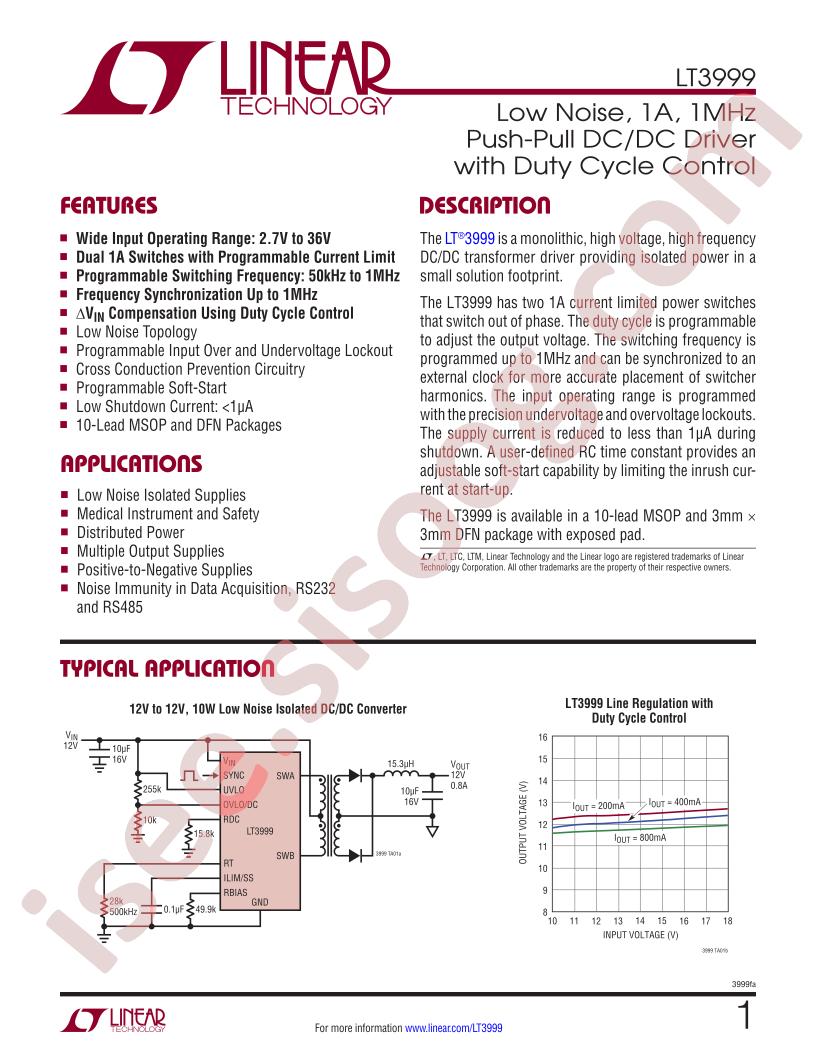

LT3999 Datasheet دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT3999 Datasheet
|
|
حجم فایل
|
309.897
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Push-pull
-
Datasheet:
Analog Devices LT3999HMSE#PBF
-
Output Type:
Adjustable
-
Input Voltage:
2.7V~36V
-
Number of Outputs:
1
-
Switching Frequency:
1MHz
-
Output Current (Max):
1A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
MSOP-10-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive, Isolation Capable
-
Voltage - Input (Min):
2.7V
-
Voltage - Input (Max):
36V
-
Voltage - Output (Min/Fixed):
-
-
Voltage - Output (Max):
-
-
Current - Output:
1A
-
Frequency - Switching:
50kHz ~ 1MHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Supplier Device Package:
10-MSOP-EP
-
Base Part Number:
LT3999
-
detail:
Push-Pull Switching Regulator IC Positive, Isolation Capable Adjustable 1 Output 1A 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
