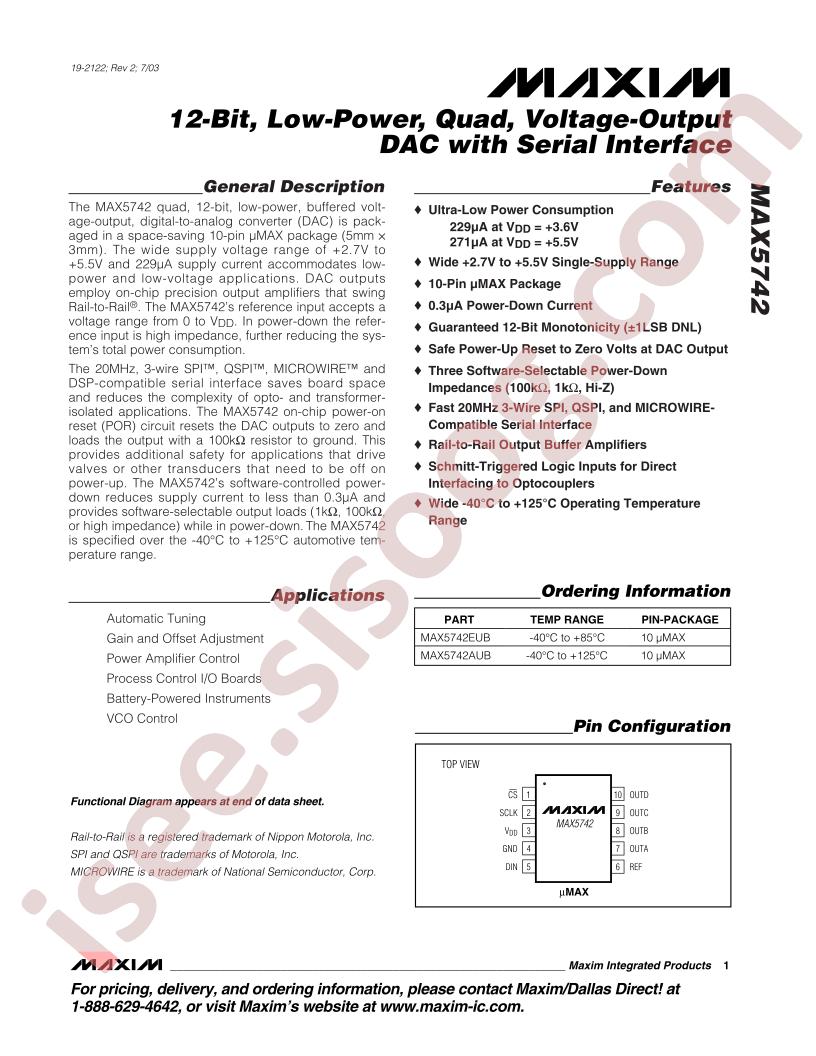

MAX5742EUB+T دیتاشیت

MAX5742EUB+T

مشخصات دیتاشیت

نام دیتاشیت MAX5742EUB+T
حجم فایل 95.217 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت MAX5742EUB+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX5742 15 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX5742EUB+T
  • Interface: SPI;DSP
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±2LSB;±1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: UMAX-10
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Mounting Type: Surface Mount
  • Number of D/A Converters: 4
  • Data Interface: SPI, DSP
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Reference Type: External
  • Number of Bits: 12
  • Part Status: Active
  • INL/DNL (LSB): ±2, ±1 (Max)
  • Differential Output: No
  • Series: -
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Base Part Number: MAX5742
  • Supplier Device Package: 10-uMAX
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Packaging: Tube
  • Architecture: String DAC
  • detail: 12 Bit Digital to Analog Converter 4 10-uMAX
