دیتاشیت LT3086IFE#PBF

LT3086 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT3086 Datasheet
حجم فایل 525.983 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

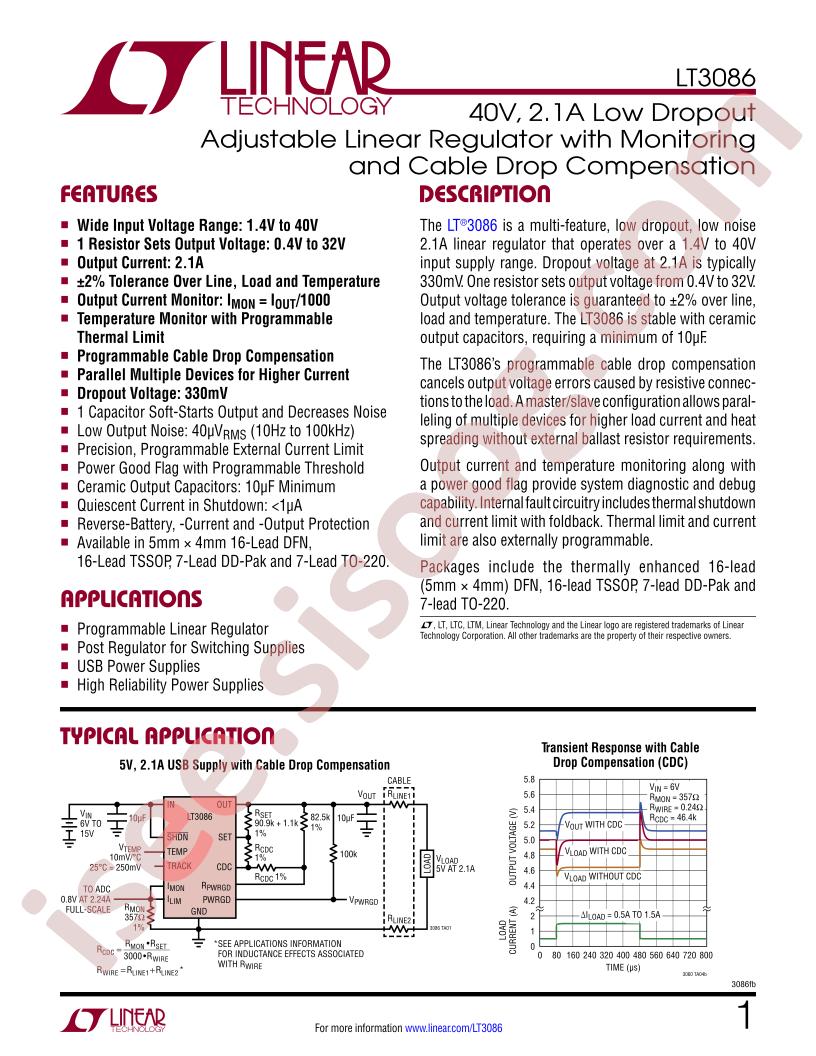

دانلود دیتاشیت LT3086 Datasheet

LT3086 Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): 40V
  • Voltage - Output (Min/Fixed): 0.4V
  • Voltage - Output (Max): 32V
  • Voltage Dropout (Max): 0.54V @ 2.1A
  • Current - Output: 2.1A
  • Current - Quiescent (Iq): 2.4mA
  • Current - Supply (Max): 88mA
  • PSRR: 80dB (120Hz)
  • Control Features: Current Limit, Enable, Power Good, Tracking
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Supplier Device Package: 16-TSSOP-EP
  • Base Part Number: LT3086
  • detail: Linear Voltage Regulator IC 1 Output 2.1A 16-TSSOP-EP
