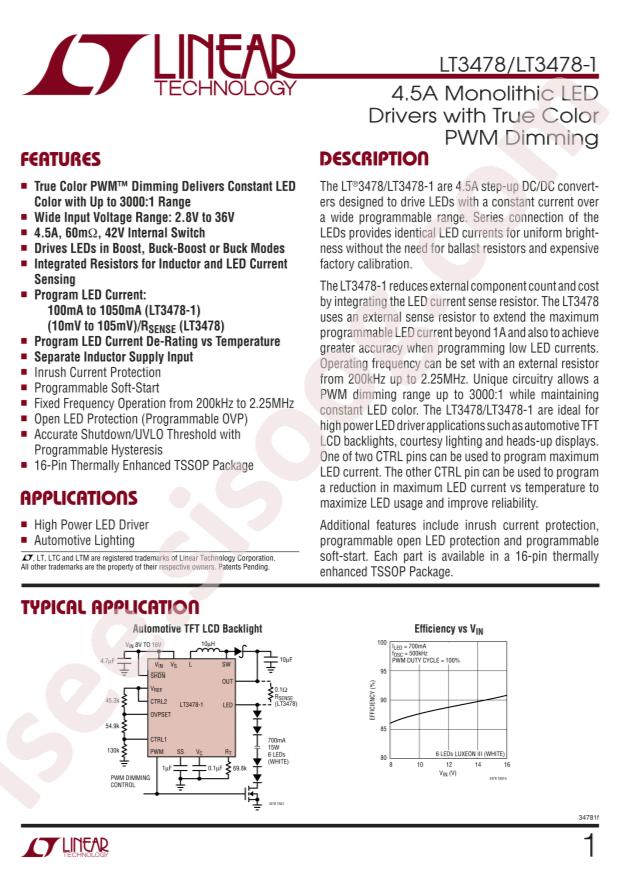

دیتاشیت LT3478EFE-1#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT3478/-1
|
| حجم فایل |
295.269
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Dimming:
PWM
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
1
-
Topology:
Step-down,boost converter
-
Datasheet:
Analog Devices LT3478EFE-1#PBF
-
Input Voltage:
2.8V~36V
-
Output Current:
4.5A
-
Output Voltage:
42V
-
Switch Frequency:
200kHz~2.25MHz
-
Operating temperature:
-40°C~+125°C
-
Package:
HTSSOP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Internal Switch(s):
Yes
-
Number of Outputs:
1
-
Voltage - Supply (Min):
2.8V
-
Voltage - Supply (Max):
36V
-
Voltage - Output:
42V
-
Current - Output / Channel:
4.5A (Switch)
-
Frequency:
200kHz ~ 2.25MHz
-
Applications:
Backlight
-
Mounting Type:
Surface Mount
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Supplier Device Package:
16-TSSOP-EP
-
Base Part Number:
LT3478
-
detail:
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 4.5A (Switch) 16-TSSOP-EP
