LT3954EUHE#PBF دیتاشیت

مشخصات دیتاشیت

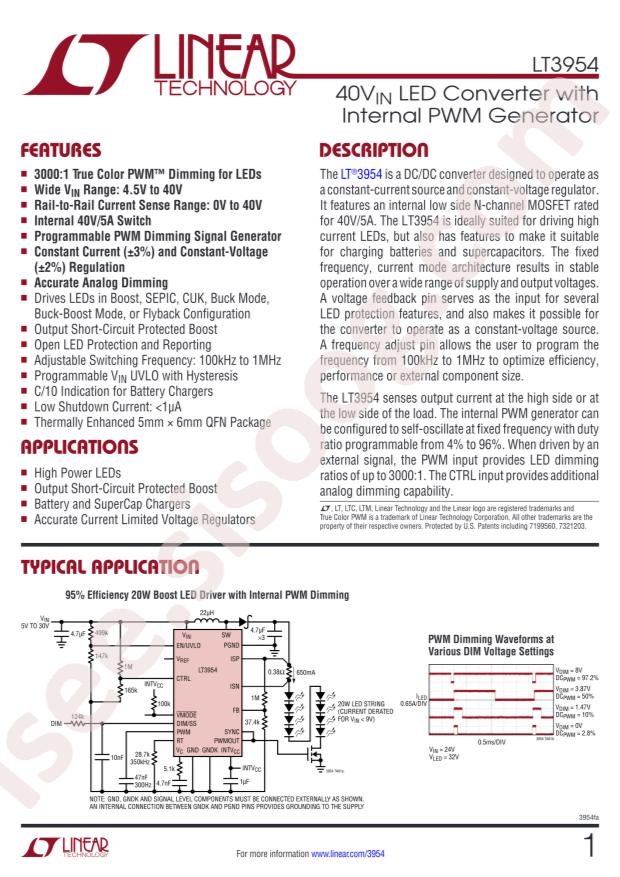

مشاهده دیتاشیت LT3954EUHE#PBF	دانلود دیتاشیت

LT3954 26 pages

RoHS: true
Type: DC-DCVoltage Stabilizer
Dimming: Analog;PWM
Category: Nixie Tube Driver/LED Driver/LED Drivers
Channels: 1
Topology: Flyback,SEPIC,Step-down,boost converter
Datasheet: Analog Devices LT3954EUHE#PBF
Input Voltage: 4.5V~40V
Output Current: 5A
Switch Frequency: 100kHz~1MHz
Operating temperature: -40°C~+125°C
Package: QFN-36-EP(5x6)
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Internal Switch(s): Yes
Number of Outputs: 1
Voltage - Supply (Min): 4.5V
Voltage - Supply (Max): 40V
Voltage - Output: -
Current - Output / Channel: 5A (Switch)
Frequency: 100kHz ~ 1MHz
Applications: -
Mounting Type: Surface Mount
Package / Case: 36-WFQFN, 28 Leads, Exposed Pad
Supplier Device Package: 36-QFN (5x6)
Base Part Number: LT3954
detail: LED Driver IC 1 Output DC DC Regulator Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 5A (Switch) 36-QFN (5x6)
