MAX19516ETM+T دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MAX19516ETM+T	دانلود دیتاشیت

MAX19516 35 pages

RoHS: true
Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)

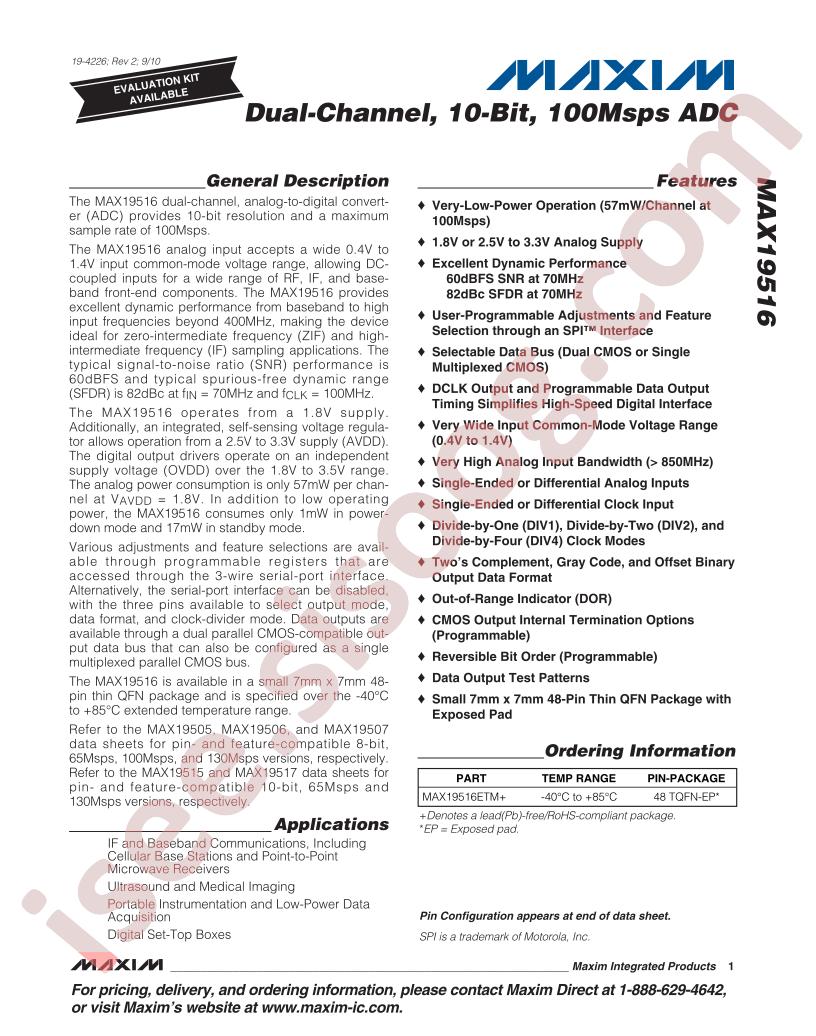

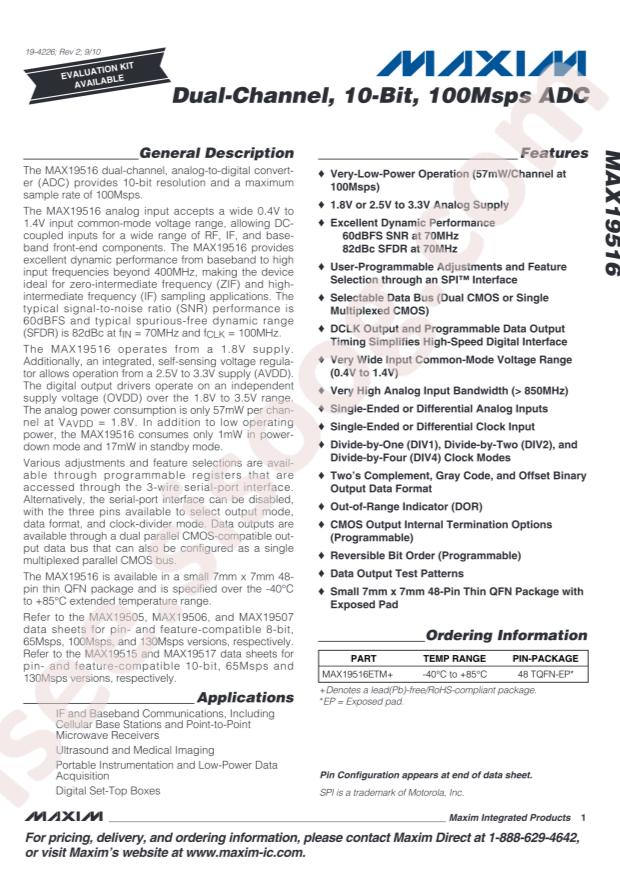

Datasheet: Analog Devices Inc./Maxim Integrated MAX19516ETM+T
Interface: Parallel
resolution: 10Bit
Supply Voltage: 1.7V~1.9V;2.3V~3.5V
differential input: Yes
number of channels: 2
sampling frequency: 100MHz
Operating Temperature: -40°C~+85°C
Package: TQFN-48-EP(7x7)
Manufacturer: Analog Devices Inc./Maxim Integrated
Part Status: Active
Data Interface: Parallel
Voltage - Supply, Digital: 1.7V ~ 3.5V
Sampling Rate (Per Second): 100M
Architecture: Pipelined
Supplier Device Package: 48-TQFN (7x7)
Package / Case: 48-WFQFN Exposed Pad
Number of A/D Converters: 2
Packaging: Tube
Features: Simultaneous Sampling
Configuration: S/H-ADC
Ratio - S/H:ADC: 1:1
Input Type: Differential, Single Ended
Reference Type: External, Internal
Number of Bits: 10
Mounting Type: Surface Mount
Series: -
Voltage - Supply, Analog: 1.7V ~ 1.9V, 2.3V ~ 3.5V
Number of Inputs: 2
Base Part Number: MAX19516
detail: 10 Bit Analog to Digital Converter 2 Input 2 Pipelined 48-TQFN (7x7)
