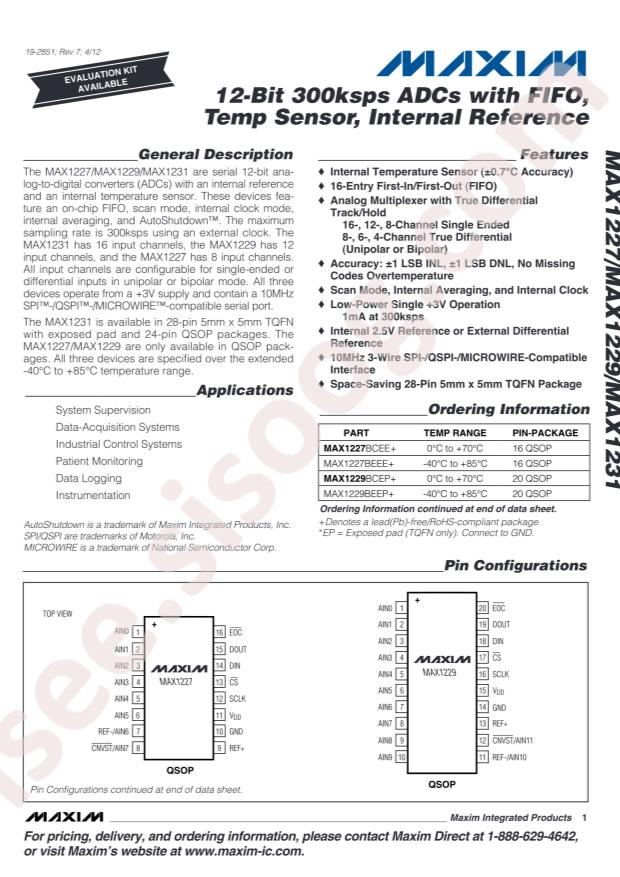

- دیتاشیت MAX1231BEEG+T
MAX1231BEEG+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX1231BEEG+T |
|---|---|
| حجم فایل | 103.604 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت MAX1231BEEG+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAX1227,29,31 22 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices Inc./Maxim Integrated MAX1231BEEG+T
- Interface: SPI
- resolution: 12Bit
- Supply Voltage: 2.7V~3.6V
- differential input: Yes
- number of channels: 8;16
- sampling frequency: 300kHz
- Operating Temperature: -40°C~+85°C
- Package: QSOP-24
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Status: Active
- Data Interface: SPI
- Voltage - Supply, Digital: 2.7V ~ 3.6V
- Sampling Rate (Per Second): 300k
- Architecture: SAR
- Supplier Device Package: 24-QSOP
- Package / Case: 24-SSOP (0.154", 3.90mm Width)
- Number of A/D Converters: 1
- Packaging: Tube
- Features: Temperature Sensor
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Input Type: Differential, Single Ended
- Reference Type: External, Internal
- Number of Bits: 12
- Mounting Type: Surface Mount
- Series: -
- Voltage - Supply, Analog: 2.7V ~ 3.6V
- Number of Inputs: 8, 16
- Base Part Number: MAX1231
- detail: 12 Bit Analog to Digital Converter 8, 16 Input 1 SAR 24-QSOP
