LTC1286CN8#PBF دیتاشیت

LTC1286CN8#PBF

مشخصات دیتاشیت

نام دیتاشیت LTC1286CN8#PBF
حجم فایل 100.922 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

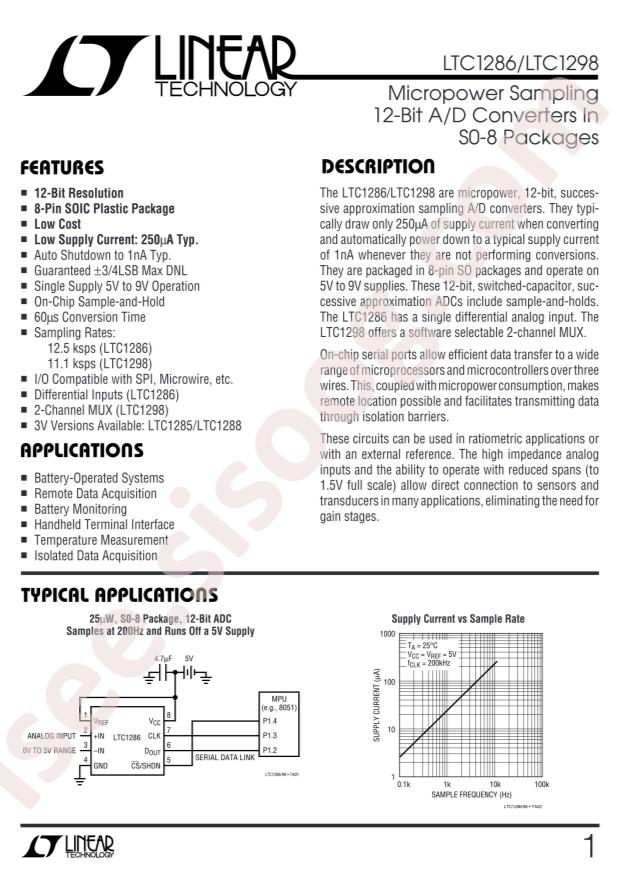

مشاهده دیتاشیت LTC1286CN8#PBF

دانلود دیتاشیت

سایر مستندات

LTC1286, LTC1298 24 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC1286CN8#PBF
  • Interface: SPI
  • resolution: 12Bit
  • Supply Voltage: 4.5V~9V
  • differential input: Yes
  • number of channels: 1
  • sampling frequency: 12.5kHz
  • Operating Temperature: 0°C~+70°C
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 12.5k
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: SPI
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 4.5V ~ 9V
  • Voltage - Supply, Digital: 4.5V ~ 9V
  • Features: -
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: LTC1286
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR 8-PDIP
