LTC3425EUH#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTC3425EUH#PBF
|
|
حجم فایل
|
102.853
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
Analog Devices LTC3425EUH#PBF
-
Output Type:
Adjustable
-
Input Voltage:
0.5V~4.5V
-
Output Voltage:
2.4V~5.25V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
5A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-

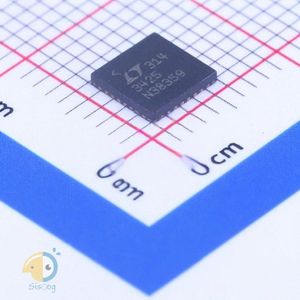

Package:
QFN-32-EP(5x5)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
0.5V
-
Voltage - Input (Max):
4.5V
-
Voltage - Output (Min/Fixed):
2.4V
-
Voltage - Output (Max):
5.25V
-
Current - Output:
5A (Switch)
-
Frequency - Switching:
100kHz ~ 2MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
32-WFQFN Exposed Pad
-
Supplier Device Package:
32-QFN-EP (5x5)
-
Base Part Number:
LTC3425
-
detail:
Boost Switching Regulator IC Positive Adjustable 2.4V 1 Output 5A (Switch) 32-WFQFN Exposed Pad
