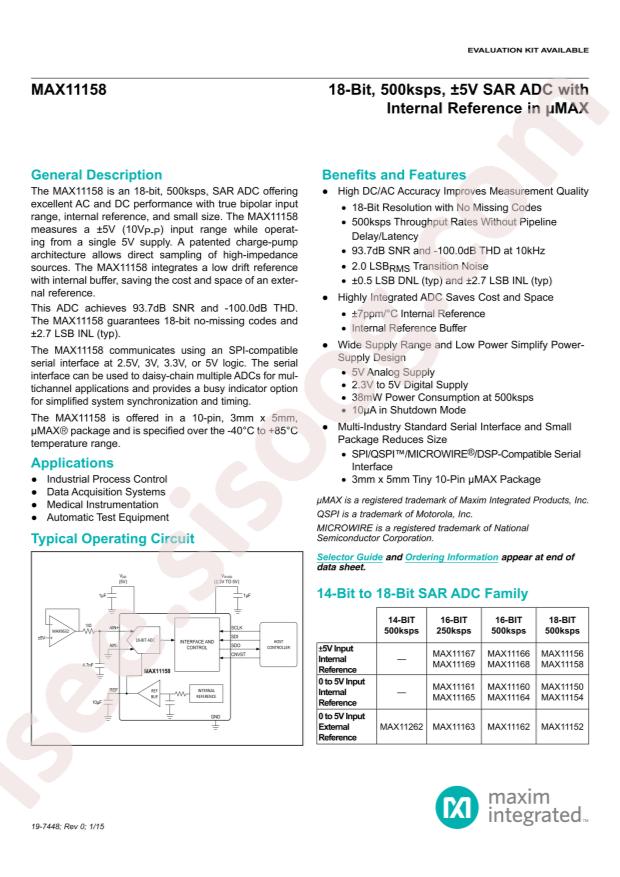

MAX11158EUB+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX11158EUB+T |
|---|---|
| حجم فایل | 99.821 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت MAX11158EUB+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAX11158 Datasheet 26 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices Inc./Maxim Integrated MAX11158EUB+T
- Interface: SPI;DSP
- resolution: 18Bit
- Supply Voltage: 5V
- number of channels: 1
- sampling frequency: 500kHz
- Operating Temperature: -40°C~+85°C
- Package: UMAX-10
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Status: Active
- Data Interface: SPI, DSP
- Voltage - Supply, Digital: 2.3V ~ 5V
- Sampling Rate (Per Second): 500k
- Architecture: SAR
- Supplier Device Package: 10-uMAX
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Number of A/D Converters: 1
- Packaging: Tube
- Features: -
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Input Type: Pseudo-Differential
- Reference Type: Internal
- Number of Bits: 18
- Mounting Type: Surface Mount
- Series: -
- Voltage - Supply, Analog: 5V
- Number of Inputs: 1
- Base Part Number: MAX11158
- detail: 18 Bit Analog to Digital Converter 1 Input 1 SAR 10-uMAX
