- دیتاشیت LTpowerCAD II User Guide
LTpowerCAD II User Guide دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LTpowerCAD II User Guide |
|---|---|
| حجم فایل | 5376.71 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 60 |
دانلود دیتاشیت LTpowerCAD II User Guide |
دانلود دیتاشیت |
|---|
سایر مستندات

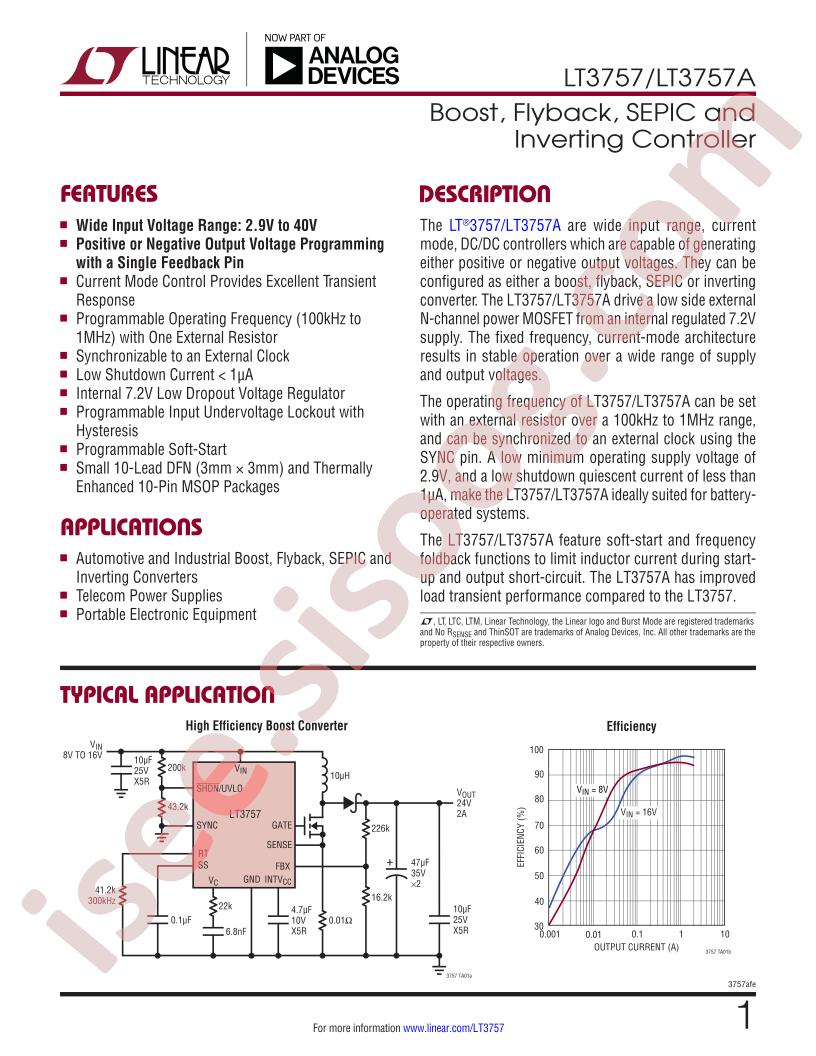

LT3757(A) Datasheet 36 pages
LT3757AEDD#TRPBF 36 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Datasheet: Analog Devices LT3757MPMSE#PBF
- Package: MSOP-10-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Up, Step-Up/Step-Down
- Output Configuration: Positive and Negative
- Topology: Boost, Flyback, SEPIC
- Number of Outputs: 1
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 2.9V ~ 40V
- Frequency - Switching: 100kHz ~ 1MHz
- Duty Cycle (Max): -
- Synchronous Rectifier: No
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Enable, Frequency Control, Soft Start
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 10-MSOP-EP
- Base Part Number: LT3757
- detail: Boost, Flyback, SEPIC Regulator Positive and Negative Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-MSOP-EP
