دیتاشیت MAX14803CCM+T

مشخصات دیتاشیت

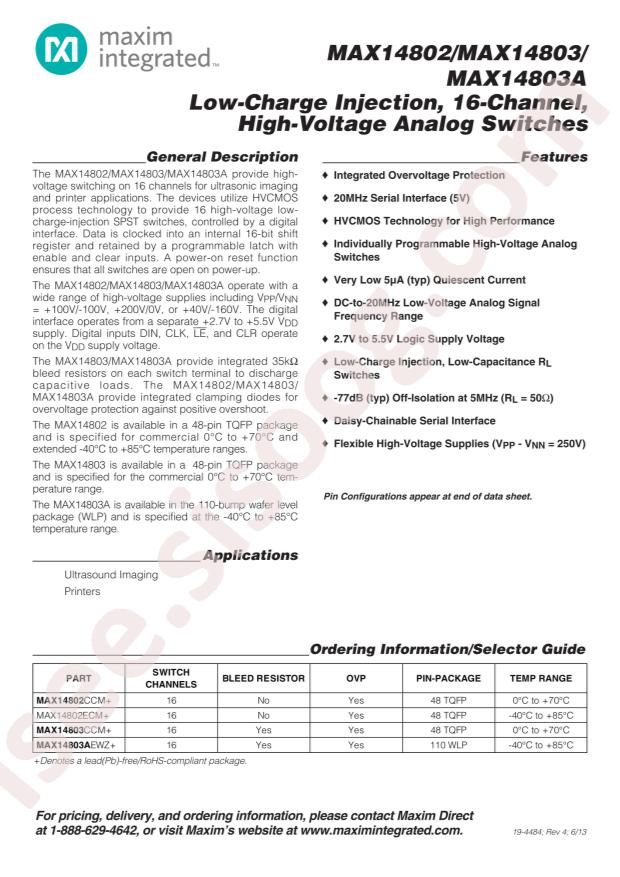

دانلود دیتاشیت MAX14802,03(A) Series	MAX14802,03(A) Series Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Analog Devices Inc./Maxim Integrated MAX14803CCM+T
Turn-on time: 3.5us
Turn-off time: 3.5us
Supply Voltage: 40V~250V
Switch Circuit: SPST(SPST)-Normal Open
Number of Channels: 16
On-State Resistance (Max): 48Ω
Package: TQFP-48(7x7)
Manufacturer: Analog Devices Inc./Maxim Integrated
Multiplexer/Demultiplexer Circuit: 1:1
Part Status: Discontinued at Digi-Key
Charge Injection: 820pC
-3db Bandwidth: 20MHz
Operating Temperature: 0°C ~ 70°C (TA)
Voltage - Supply, Dual (V±): ±160
Supplier Device Package: 48-LQFP (7x7)
Package / Case: 48-LQFP
Switch Time (Ton, Toff) (Max): 3.5µs, 3.5µs
Packaging: Cut Tape (CT)
Channel-to-Channel Matching (ΔRon): 2.4Ohm
Voltage - Supply, Single (V+): 40V ~ 250V
Channel Capacitance (CS(off), CD(off)): 11pF
Mounting Type: Surface Mount
Series: -
Crosstalk: -80dB @ 5MHz
Number of Circuits: 16
Current - Leakage (IS(off)) (Max): 2µA
Base Part Number: MAX14803
detail: 16 Circuit IC Switch 1:1 48Ohm 48-LQFP (7x7)
