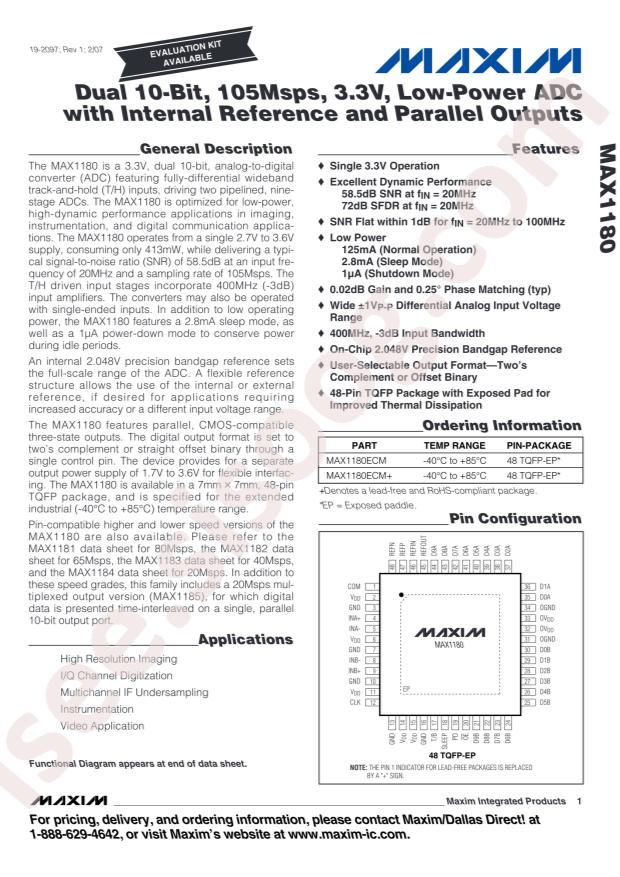

- دیتاشیت MAX1180ECM+D
MAX1180ECM+D دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX1180ECM+D |
|---|---|
| حجم فایل | 117.659 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت MAX1180ECM+D |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAX1180 21 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices Inc./Maxim Integrated MAX1180ECM+D
- Interface: Parallel
- resolution: 10Bit
- Supply Voltage: 2.7V~3.6V
- differential input: Yes
- number of channels: 2
- sampling frequency: 105MHz
- Operating Temperature: -40°C~+85°C
- Package: TQFP-48(7x7)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Status: Active
- Data Interface: Parallel
- Voltage - Supply, Digital: 2.7V ~ 3.6V
- Sampling Rate (Per Second): 105M
- Architecture: Pipelined
- Supplier Device Package: 48-TQFP-EP (7x7)
- Package / Case: 48-TQFP Exposed Pad
- Number of A/D Converters: 2
- Packaging: Tray
- Features: Simultaneous Sampling
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Input Type: Differential, Single Ended
- Reference Type: External, Internal
- Number of Bits: 10
- Mounting Type: Surface Mount
- Series: -
- Voltage - Supply, Analog: 2.7V ~ 3.6V
- Number of Inputs: 2
- Base Part Number: MAX1180
- detail: 10 Bit Analog to Digital Converter 2 Input 2 Pipelined 48-TQFP-EP (7x7)
