MAX4802CCM+T دیتاشیت

مشخصات دیتاشیت

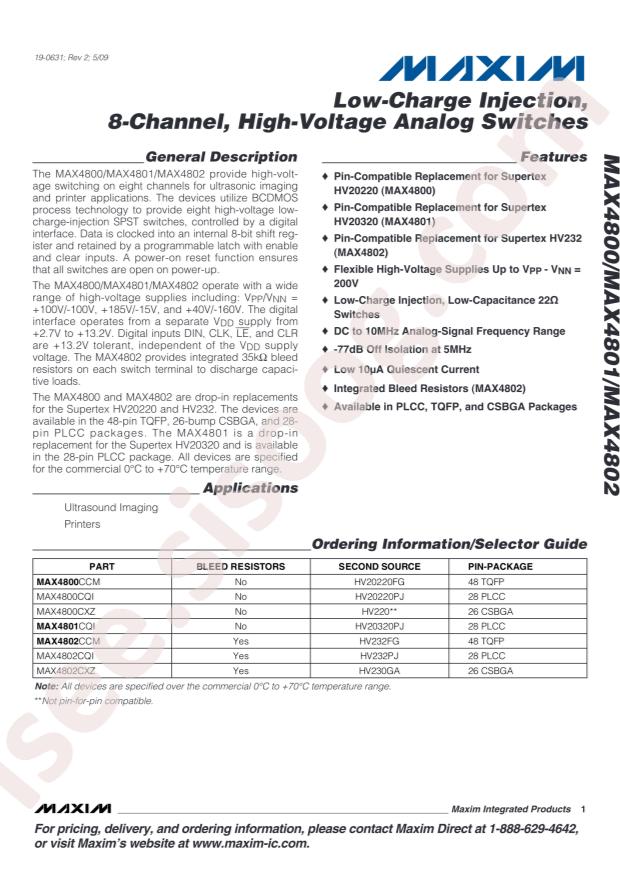

مشاهده دیتاشیت MAX4802CCM+T	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Analog Devices Inc./Maxim Integrated MAX4802CCM+T
Turn-on time: 5us
Turn-off time: 5us
Supply Voltage: 2.7V~13.2V
Switch Circuit: SPST(SPST)-Normal Open
Number of Channels: 8
On-State Resistance (Max): 38Ω
Package: QFP-48(7x7)
Manufacturer: Analog Devices Inc./Maxim Integrated
Multiplexer/Demultiplexer Circuit: 1:1
Part Status: Active
Charge Injection: 820pC
-3db Bandwidth: -
Operating Temperature: 0°C ~ 70°C (TA)
Voltage - Supply, Dual (V±): -
Supplier Device Package: 48-LQFP/48-TQFP (7x7)
Package / Case: 48-LQFP
Switch Time (Ton, Toff) (Max): 5µs, 5µs
Packaging: Tray
Channel-to-Channel Matching (ΔRon): 1.9Ohm
Voltage - Supply, Single (V+): 2.7V ~ 13.2V
Channel Capacitance (CS(off), CD(off)): 18pF
Mounting Type: Surface Mount
Series: -
Crosstalk: -80dB @ 5MHz
Number of Circuits: 8
Current - Leakage (IS(off)) (Max): 4µA
Base Part Number: MAX4802
detail: 8 Circuit IC Switch 1:1 38Ohm 48-LQFP/48-TQFP (7x7)
