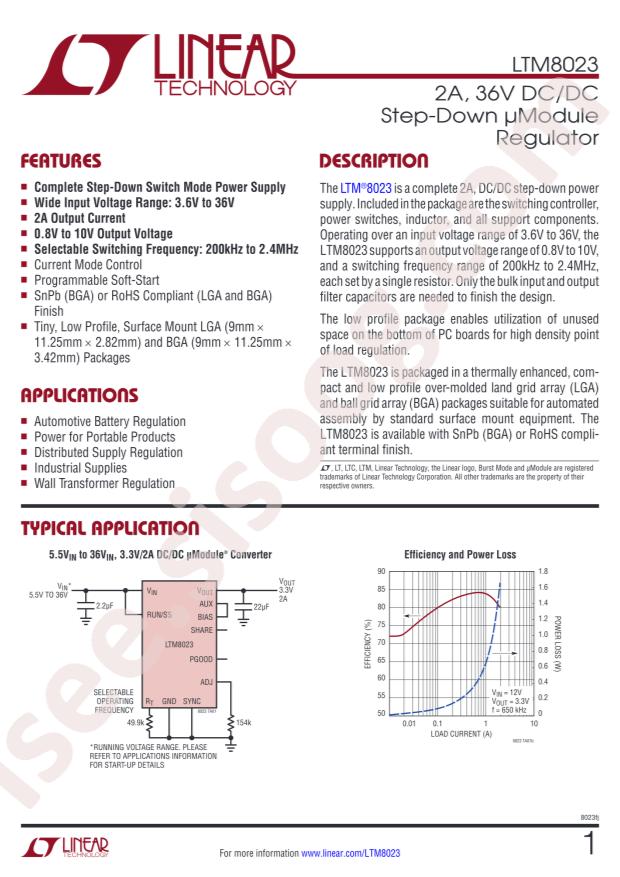

LTM8023EV#PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LTM8023EV#PBF
|
|
حجم فایل
|
92.273
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Power Modules
-
Function:
-
-
Datasheet:
Analog Devices LTM8023EV#PBF
-
Output Channel:
1
-
Output Voltage:
0.8V~10V
-
Conversion Type:
DC-DC
-
Input Voltage(DC):
3.6V~36V
-
Output Current (Max):
2A
-
Package:
LGA
-
Manufacturer:
Analog Devices
-
Series:
µModule®
-
Packaging:
Tray
-
Part Status:
Active
-
Type:
Non-Isolated PoL Module
-
Number of Outputs:
1
-
Voltage - Input (Min):
3.6V
-
Voltage - Input (Max):
36V
-
Voltage - Output 1:
0.8 ~ 10V
-
Voltage - Output 2:
-
-
Voltage - Output 3:
-
-
Current - Output (Max):
2A
-
Applications:
ITE (Commercial)
-
Features:
-
-
Operating Temperature:
-40°C ~ 85°C
-
Efficiency:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
50-BLGA Module
-
Size / Dimension:
0.44" L x 0.35" W x 0.11" H (11.3mm x 9.0mm x 2.8mm)
-
Supplier Device Package:
50-LGA (11.25x9)
-
Base Part Number:
LTM8023
-
detail:
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 10V 2A 3.6V - 36V Input
