MAX5889EGK+TD دیتاشیت

MAX5889EGK+TD

مشخصات دیتاشیت

نام دیتاشیت MAX5889EGK+TD
حجم فایل 116.402 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

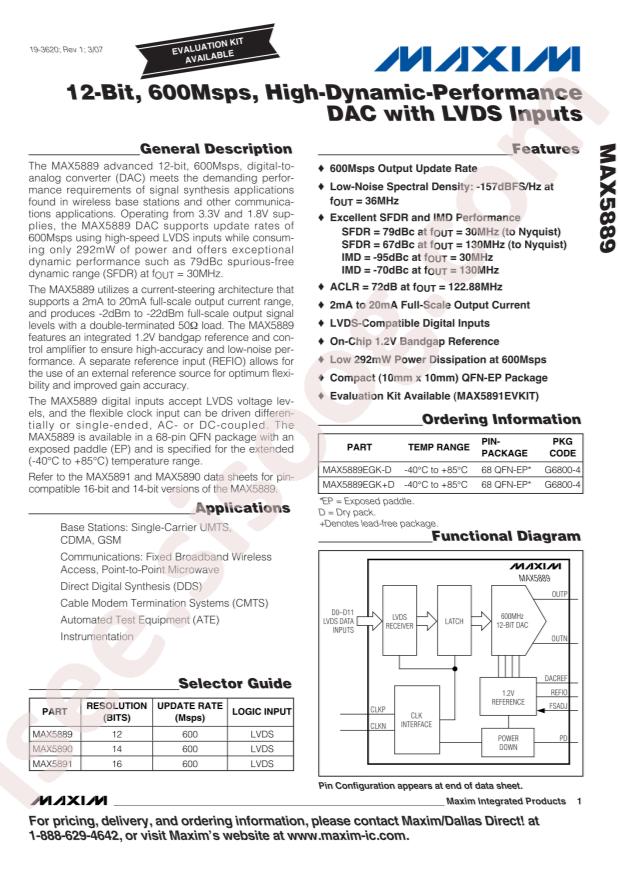

مشاهده دیتاشیت MAX5889EGK+TD

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX5889 16 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX5889EGK+TD
  • Interface: Parallel
  • resolution: 12
  • output type: Current-非缓冲
  • built-up time: 11us
  • Supply Voltage: 1.71V~1.89V;3.135V~3.465V
  • Integral nonlinearity: ±0.25LSB;±0.15LSB
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-68-EP(10x10)
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Mounting Type: Surface Mount
  • Number of D/A Converters: 1
  • Data Interface: LVDS - Parallel
  • Voltage - Supply, Digital: 1.71V ~ 1.89V, 3.135V ~ 3.465V
  • Reference Type: External, Internal
  • Number of Bits: 12
  • Part Status: Active
  • INL/DNL (LSB): ±0.25, ±0.15
  • Differential Output: Yes
  • Series: -
  • Voltage - Supply, Analog: 1.71V ~ 1.89V, 3.135V ~ 3.465V
  • Base Part Number: MAX5889
  • Supplier Device Package: 68-QFN-EP (10x10)
  • Package / Case: 68-VFQFN Exposed Pad
  • Settling Time: 11µs (Typ)
  • Packaging: Tape & Reel (TR)
  • Architecture: Current Steering
  • detail: 12 Bit Digital to Analog Converter 1 68-QFN-EP (10x10)
