دیتاشیت LTC1446CN8#PBF

LTC1446/L

مشخصات دیتاشیت

نام دیتاشیت LTC1446/L
حجم فایل 176.898 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

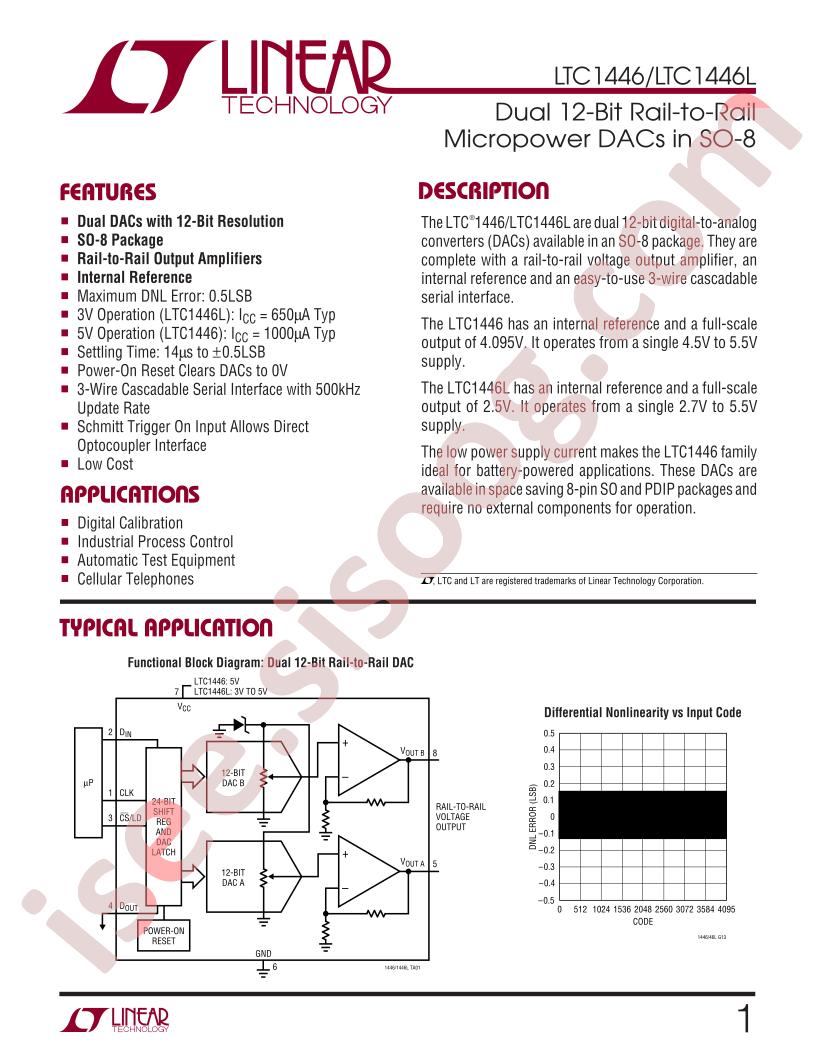

دانلود دیتاشیت LTC1446/L

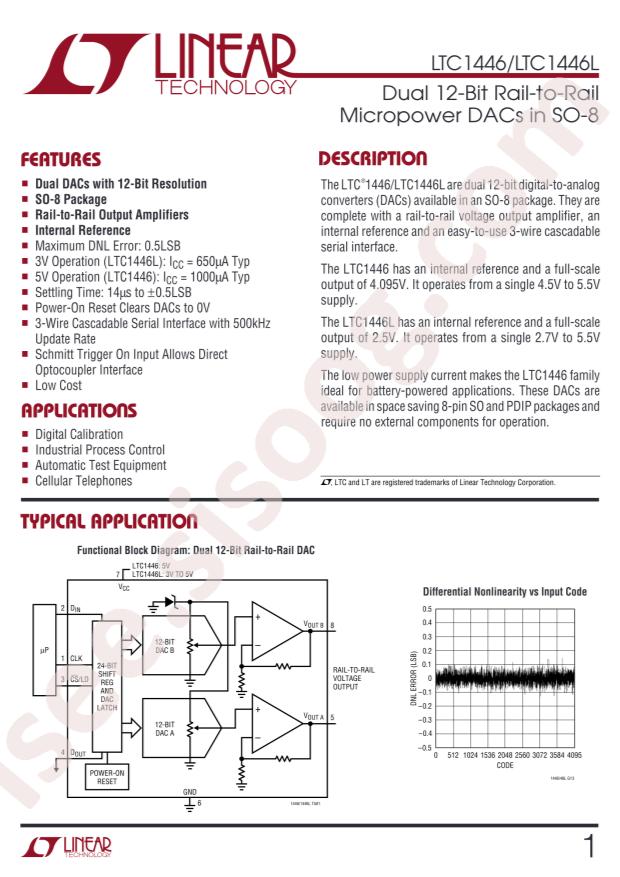

LTC1446/L Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices LTC1446CN8#PBF
  • Interface: SPI
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 14us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±2.5LSB;±0.2LSB
  • Operating Temperature: 0°C~+70°C
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 2
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: Internal
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • INL/DNL (LSB): ±2.5, ±0.2
  • Architecture: String DAC
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: LTC1446
  • detail: 12 Bit Digital to Analog Converter 2 8-PDIP
