LTC2756BCG#PBF دیتاشیت

LTC2756BCG#PBF

مشخصات دیتاشیت

نام دیتاشیت LTC2756BCG#PBF
حجم فایل 96.456 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

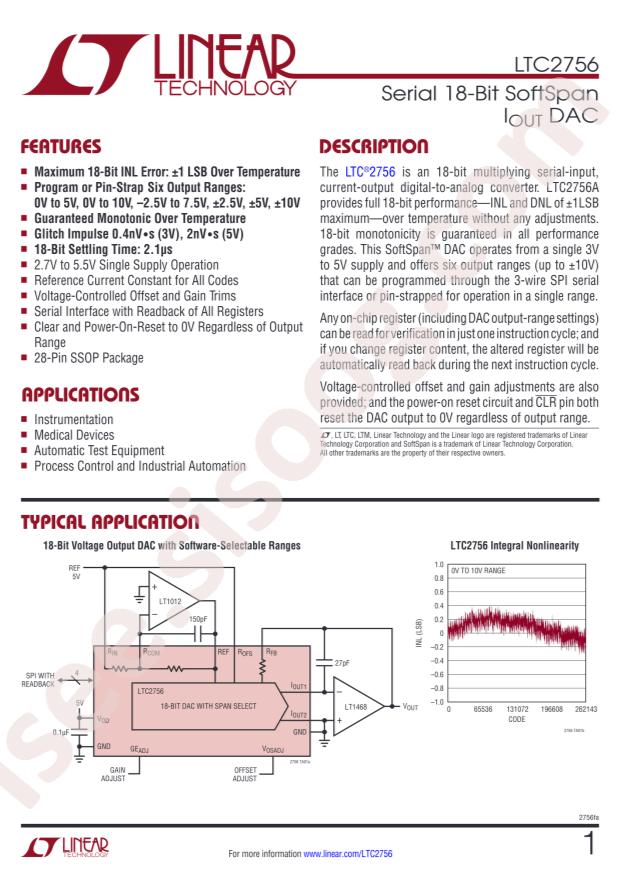

مشاهده دیتاشیت LTC2756BCG#PBF

دانلود دیتاشیت

سایر مستندات

LTC2756 Datasheet 24 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices LTC2756BCG#PBF
  • Interface: SPI
  • Resolution: 18Bit
  • Output Type: Current-非缓冲
  • Settling Time: 2.1us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±2LSB;±1LSB
  • Operating Temperature: 0°C~+70°C
  • Package: SSOP-28-208mil
  • Manufacturer: Analog Devices
  • Series: SoftSpan™
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 18
  • Number of D/A Converters: 1
  • Differential Output: Yes
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±2 (Max), ±1 (Max)
  • Architecture: Multiplying DAC
  • Package / Case: 28-SSOP (0.209", 5.30mm Width)
  • Supplier Device Package: 28-SSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2756
  • detail: 18 Bit Digital to Analog Converter 1 28-SSOP
