دیتاشیت LTC2500IDKD-32#PBF

LTC2500IDKD-32#PBF

مشخصات دیتاشیت

نام دیتاشیت LTC2500IDKD-32#PBF
حجم فایل 106.421 کیلوبایت
نوع فایل pdf
تعداد صفحات 54

LTC2500IDKD-32#PBF

دانلود دیتاشیت

سایر مستندات

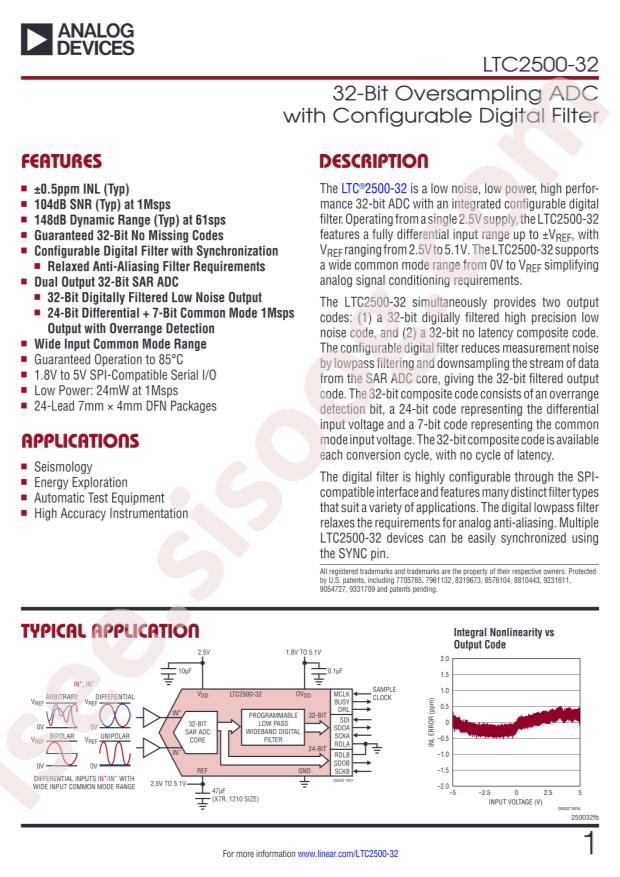

LTC2500-32 Datasheet 54 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC2500IDKD-32#PBF
  • Interface: Parallel;SPI
  • resolution: 32Bit
  • Supply Voltage: 2.375V~2.625V
  • differential input: Yes
  • number of channels: 1
  • sampling frequency: 1MHz
  • Operating Temperature: -40°C~+85°C
  • Package: DFN-24(4x7)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 32
  • Sampling Rate (Per Second): 1M
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: Parallel, SPI
  • Configuration: ADC
  • Ratio - S/H:ADC: 0:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 2.375V ~ 2.625V
  • Voltage - Supply, Digital: 1.71V ~ 5.25V
  • Features: -
  • Package / Case: 24-WFDFN Exposed Pad
  • Supplier Device Package: 24-DFN (7x4)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2500
  • detail: 32 Bit Analog to Digital Converter 1 Input 1 SAR 24-DFN (7x4)
