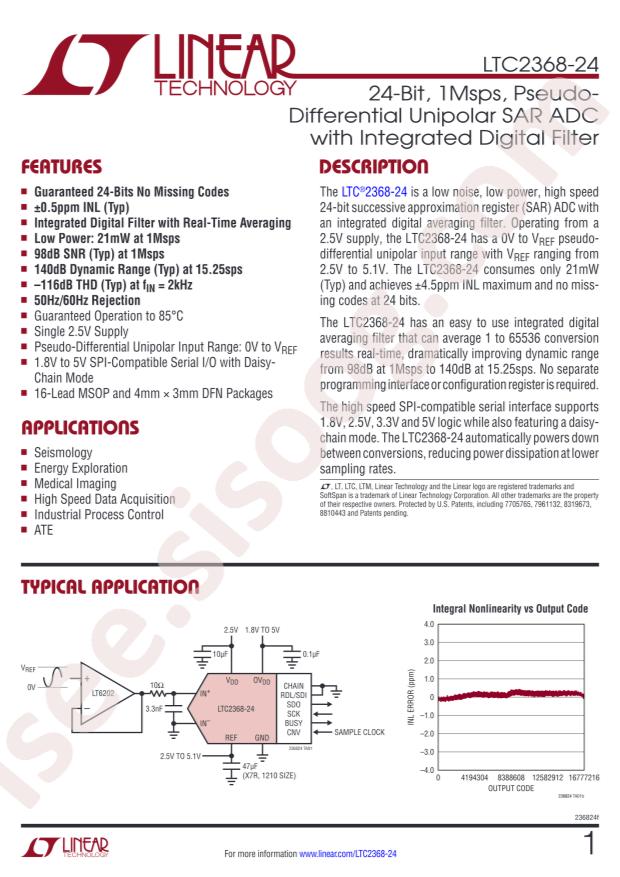

دیتاشیت LTC2368IMS-24#PBF

LTC2368-24 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC2368-24 Datasheet
حجم فایل 1148.933 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت LTC2368-24 Datasheet

LTC2368-24 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC2368IMS-24#PBF
  • Interface: SPI
  • resolution: 24Bit
  • Supply Voltage: 2.375V~2.625V
  • number of channels: 1
  • sampling frequency: 1MHz
  • Operating Temperature: -40°C~+85°C
  • Package: MSOP-16
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 24
  • Sampling Rate (Per Second): 1M
  • Number of Inputs: 1
  • Input Type: Pseudo-Differential
  • Data Interface: SPI
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 2.375V ~ 2.625V
  • Voltage - Supply, Digital: 2.375V ~ 2.625V
  • Features: -
  • Package / Case: 16-TFSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 16-MSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2368
  • detail: 24 Bit Analog to Digital Converter 1 Input 1 SAR 16-MSOP
