LT1946AEMS8E#PBF دیتاشیت

مشخصات دیتاشیت

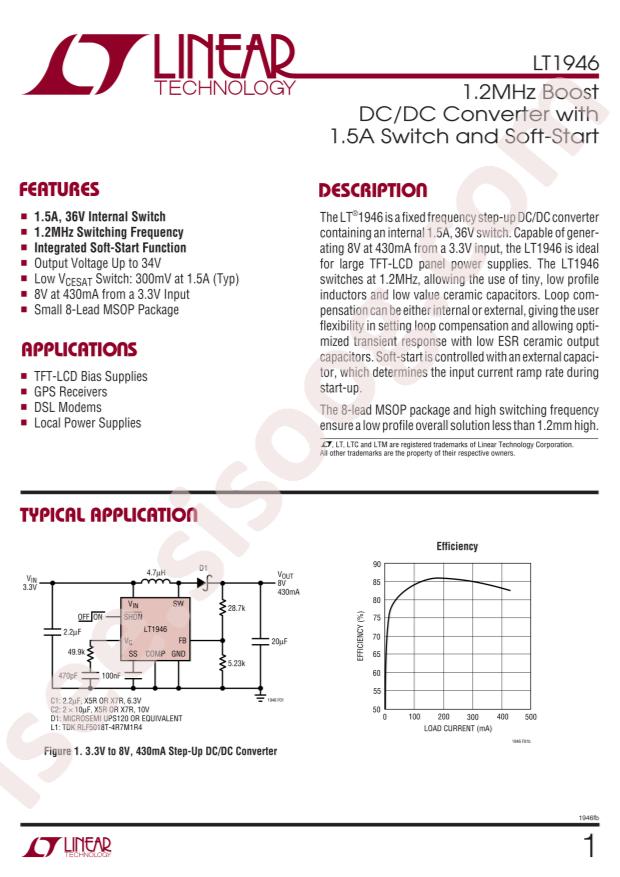

مشاهده دیتاشیت LT1946AEMS8E#PBF	دانلود دیتاشیت

LT1946A 12 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Buck-boost type
Topology: Boost;SEPIC
Datasheet: Analog Devices LT1946AEMS8E#PBF
Output Type: Adjustable
Input Voltage: 2.45V~16V
Output Voltage: 2.45V~35V
Number of Outputs: 1
Switching Frequency: 2.7MHz
Output Current (Max): 1.5A
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: NO
Package: MSOP-8-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.45V
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): 2.45V
Voltage - Output (Max): 35V
Current - Output: 1.5A (Switch)
Frequency - Switching: 2.7MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 8-MSOP-EP
Base Part Number: LT1946
detail: Boost, SEPIC Switching Regulator IC Positive Adjustable 2.45V 1 Output 1.5A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
