دیتاشیت LTC1261LIS8-4.5#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC1261L |
|---|---|
| حجم فایل | 2644.269 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |

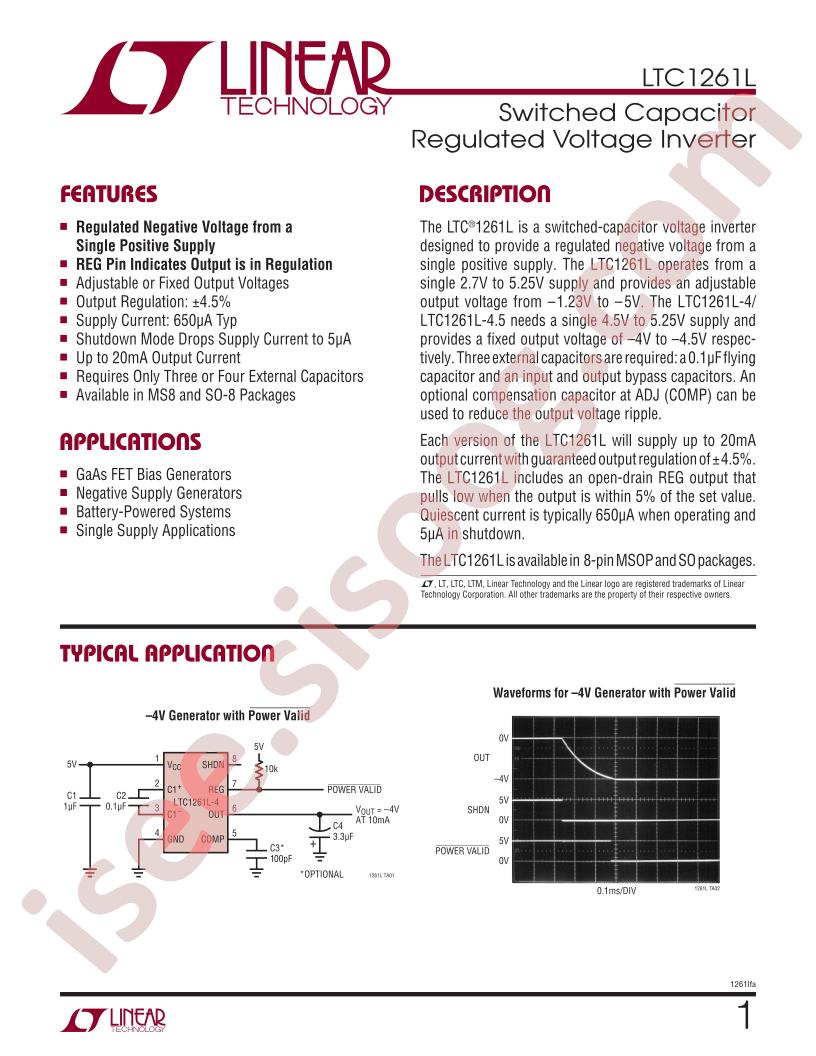

دانلود دیتاشیت LTC1261L |
LTC1261L Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Buck-boost type
- Output Type: Fixed
- Input Voltage: 4.5V~5.25V
- Output Voltage: -4.5V
- Number of Outputs: 1
- Switching Frequency: 650kHz
- Output Current (Max): 20mA
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: SOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Negative
- Topology: Charge Pump
- Voltage - Input (Min): 4.5V
- Voltage - Input (Max): 5.25V
- Voltage - Output (Min/Fixed): -4.5V
- Voltage - Output (Max): -
- Current - Output: 20mA
- Frequency - Switching: 650kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: LTC1261
- detail: Charge Pump Switching Regulator IC Negative Fixed -4.5V 1 Output 20mA 8-SOIC (0.154", 3.90mm Width)
