LT8580IMS8E#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LT8580IMS8E#PBF |
|---|---|
| حجم فایل | 101.554 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت LT8580IMS8E#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات
LTpowerCAD II Quick Start Guide 36 pages
LTpowerCAD II User Guide 60 pages

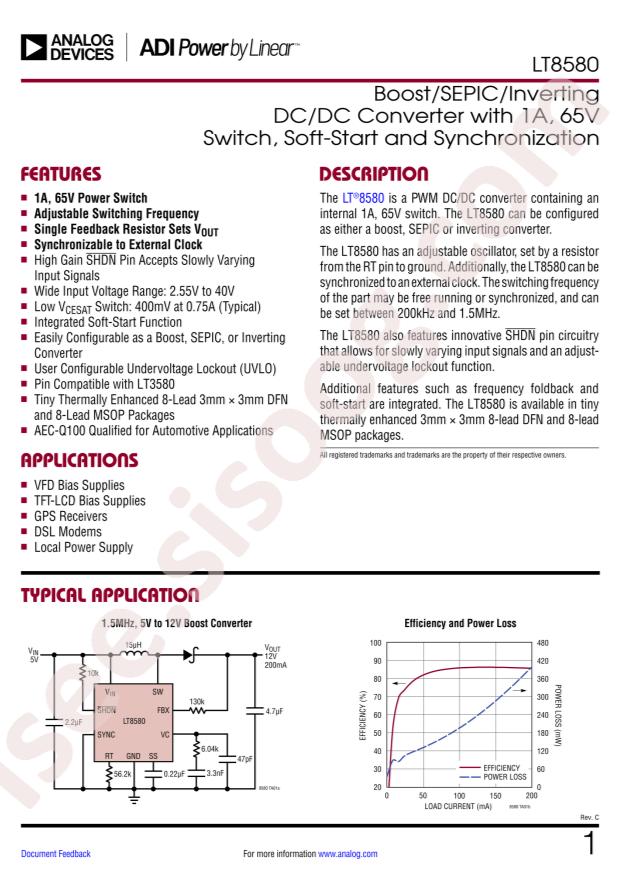

LT8580 Datasheet 32 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Buck-boost type
- Topology: Boost;Cuk;SEPIC
- Datasheet: Analog Devices LT8580IMS8E#PBF
- Output Type: Adjustable
- Input Voltage: 2.55V~40V
- Output Voltage: 1.2V~65V
- Number of Outputs: 1
- Switching Frequency: 1.5MHz
- Output Current (Max): 1.2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO

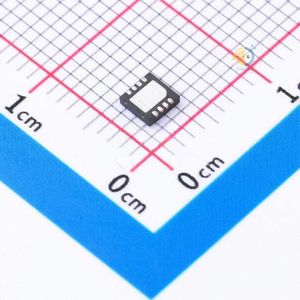

- Package: MSOP-8-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive or Negative
- Voltage - Input (Min): 2.55V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 65V (Switch)
- Current - Output: 1.2A (Switch)
- Frequency - Switching: 200kHz ~ 1.5MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 8-MSOP-EP
- Base Part Number: LT8580
- detail: Boost, Cuk, SEPIC Switching Regulator IC Positive or Negative Adjustable 1.2V 1 Output 1.2A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
