دیتاشیت LTC2173IUKG-14#PBF

LTC2173IUKG-14#PBF

مشخصات دیتاشیت

نام دیتاشیت LTC2173IUKG-14#PBF
حجم فایل 107.596 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LTC2173IUKG-14#PBF

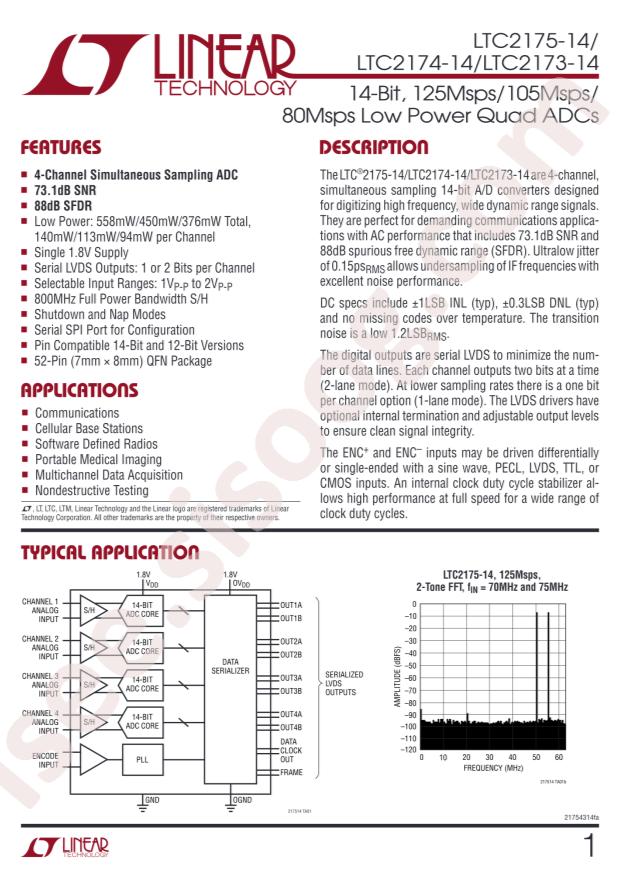

LTC2173IUKG-14#PBF Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC2173IUKG-14#PBF
  • Interface: serial
  • resolution: 14Bit
  • Supply Voltage: 1.7V~1.9V
  • differential input: Yes
  • number of channels: 4
  • sampling frequency: 80MHz
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-52-EP(7x8)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 14
  • Sampling Rate (Per Second): 80M
  • Number of Inputs: 4
  • Input Type: Differential
  • Data Interface: LVDS - Serial
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 4
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 1.7V ~ 1.9V
  • Voltage - Supply, Digital: 1.7V ~ 1.9V
  • Features: Simultaneous Sampling
  • Package / Case: 52-WFQFN Exposed Pad
  • Supplier Device Package: 52-QFN (7x8)
  • Mounting Type: Surface Mount
  • detail: 14 Bit Analog to Digital Converter 4 Input 4 Pipelined 52-QFN (7x8)
