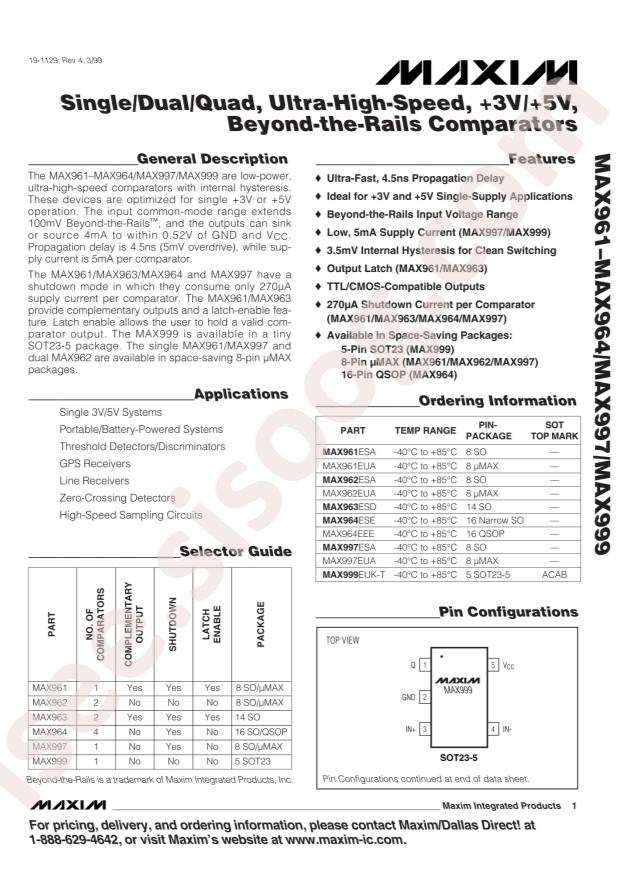

MAX961ESA 数据手册
其他文档
Part Numbering System 7 pages
MAX961-MAX999 13 pages
技术规格
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Analog Devices Inc./Maxim Integrated MAX961ESA
- Supply Current: 11mA
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Propagation Delay Time: 7ns
- Package: SOP-8
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V
- Voltage - Input Offset (Max): 1.5mV @ 5V
- Hysteresis: 3.5mV
- Output Type: CMOS, Complementary, TTL
- Supplier Device Package: 8-SOIC
- CMRR, PSRR (Typ): 80dB CMRR, 86.02dB PSRR
- Propagation Delay (Max): 7ns
- Part Status: Obsolete
- Type: General Purpose
- Series: Beyond-the-Rails™
- Current - Quiescent (Max): 11mA
- Base Part Number: MAX961
- Current - Output (Typ): -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Packaging: Tube
- Mounting Type: Surface Mount
- Current - Input Bias (Max): 15µA @ 5V
- detail: Comparator General Purpose CMOS, Complementary, TTL 8-SOIC
