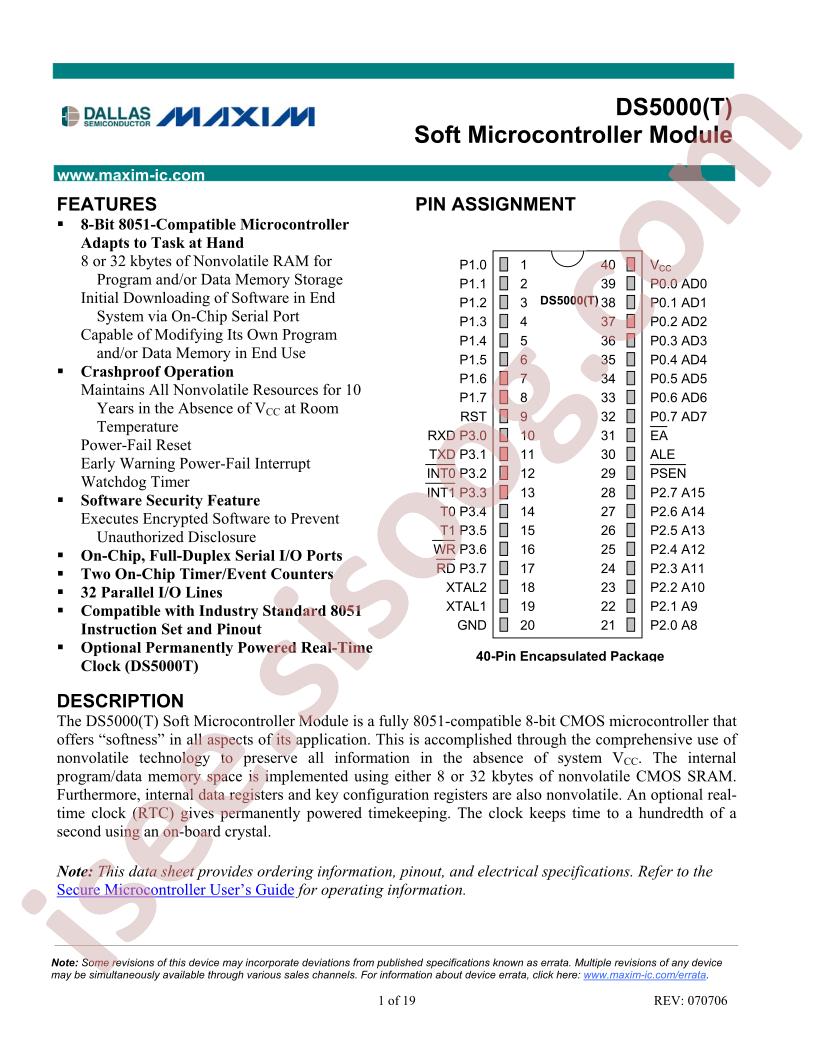

DS5000-32-16 Datasheet
Datasheet specifications
| Datasheet's name | DS5000(T) |
|---|---|
| File size | 381.77 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet DS5000(T) |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Program Memory Type: NVSRAM
- Part Status: Obsolete
- Speed: 16MHz
- RAM Size: -
- Data Converters: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Series: DS500x
- Supplier Device Package: 40-EDIP
- Package / Case: 40-DIP Module (0.610", 15.495mm)
- Packaging: Tube
- Number of I/O: 32
- Core Processor: 8051
- Core Size: 8-Bit
- EEPROM Size: -
- Connectivity: SIO, UART/USART
- Mounting Type: Through Hole
- Oscillator Type: External
- Program Memory Size: 32KB (32K x 8)
- Peripherals: Power-Fail Reset, WDT
- Manufacturer: Maxim Integrated
- Base Part Number: DS5000
- Voltage - Supply (Vcc/Vdd): 4.75V ~ 5.25V
- detail: 8051 DS500x Microcontroller IC 8-Bit 16MHz 32KB (32K x 8) NVSRAM 40-EDIP
