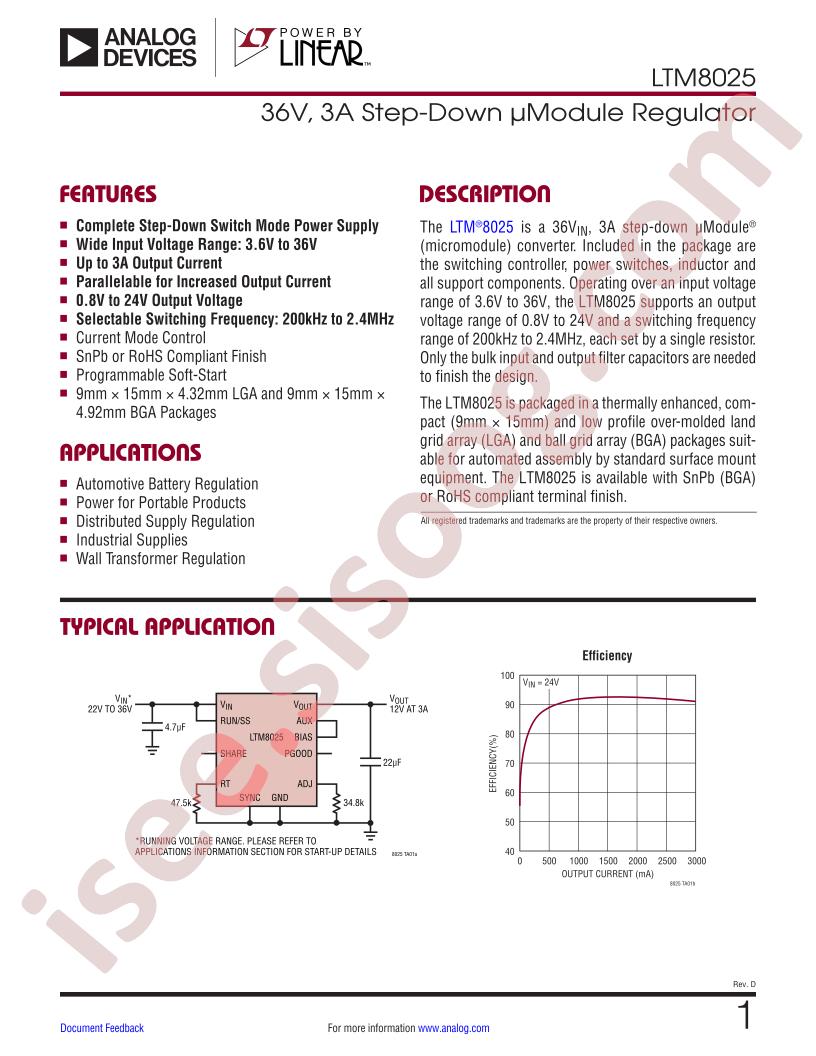

دیتاشیت LTM8025MPV#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LTM8025
|
| حجم فایل |
973.927
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
22
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Power Modules
-
Function:
-
-
Datasheet:
Analog Devices LTM8025MPV#PBF
-
Output Channel:
1
-
Output Voltage:
0.8V~24V
-
Conversion Type:
DC-DC
-
Input Voltage(DC):
3.6V~36V
-
Output Current (Max):
3A
-
Package:
LGA-70(9x15)
-
Manufacturer:
Analog Devices
-
Series:
µModule®
-
Packaging:
Tray
-
Part Status:
Active
-
Type:
Non-Isolated PoL Module
-
Number of Outputs:
1
-
Voltage - Input (Min):
3.6V
-
Voltage - Input (Max):
36V
-
Voltage - Output 1:
0.8 ~ 24V
-
Voltage - Output 2:
-
-
Voltage - Output 3:
-
-
Current - Output (Max):
3A
-
Applications:
ITE (Commercial)
-
Features:
-
-
Operating Temperature:
-55°C ~ 125°C
-
Efficiency:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
70-BLGA Module
-
Size / Dimension:
0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm)
-
Supplier Device Package:
70-LGA (15x9)
-
Base Part Number:
LTM8025
-
detail:
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 24V 3A 3.6V - 36V Input
