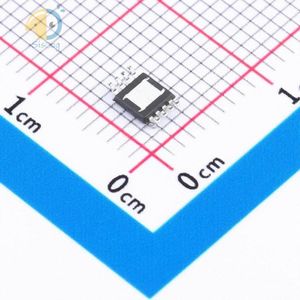

دیتاشیت LT3063EMS8E#PBF

LT3063 Series

مشخصات دیتاشیت

نام دیتاشیت LT3063 Series
حجم فایل 975.092 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت LT3063 Series

LT3063 Series Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): 45V
  • Voltage - Output (Min/Fixed): 0.6V
  • Voltage - Output (Max): 19V
  • Voltage Dropout (Max): 0.53V @ 200mA
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 90µA
  • Current - Supply (Max): 10mA
  • PSRR: 85dB (120Hz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Supplier Device Package: 8-MSOP
  • Base Part Number: LT3063
  • detail: Linear Voltage Regulator IC 1 Output 200mA 8-MSOP
