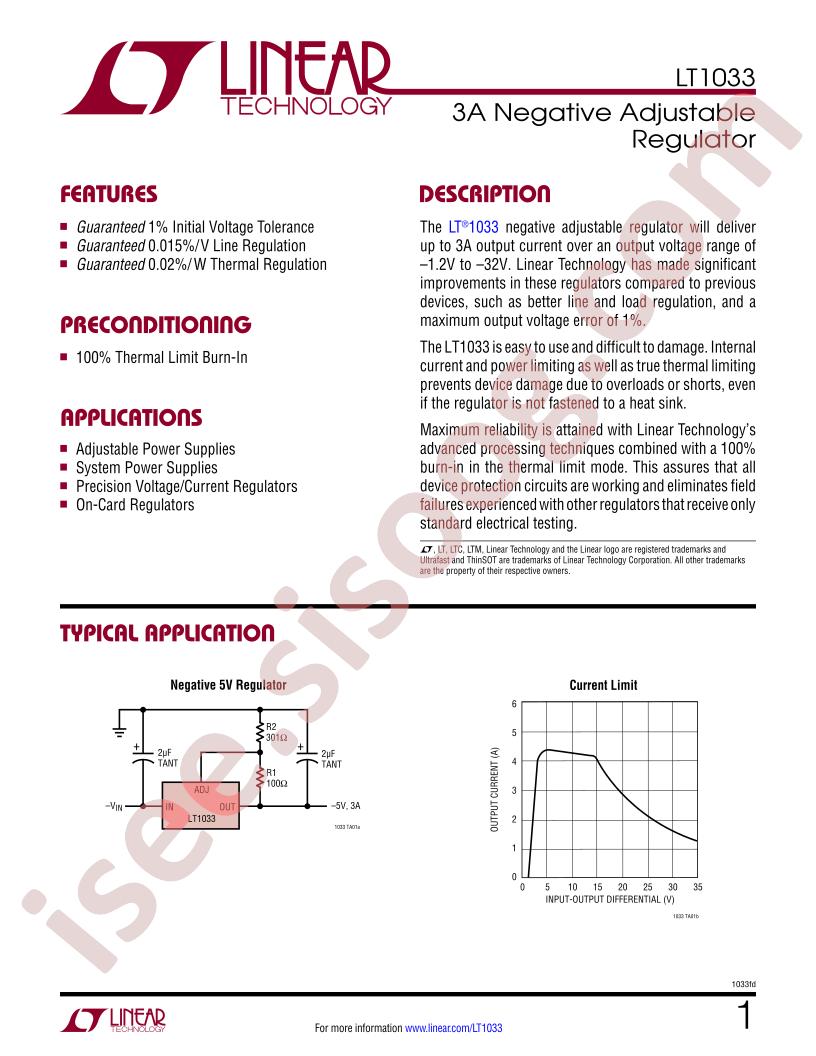

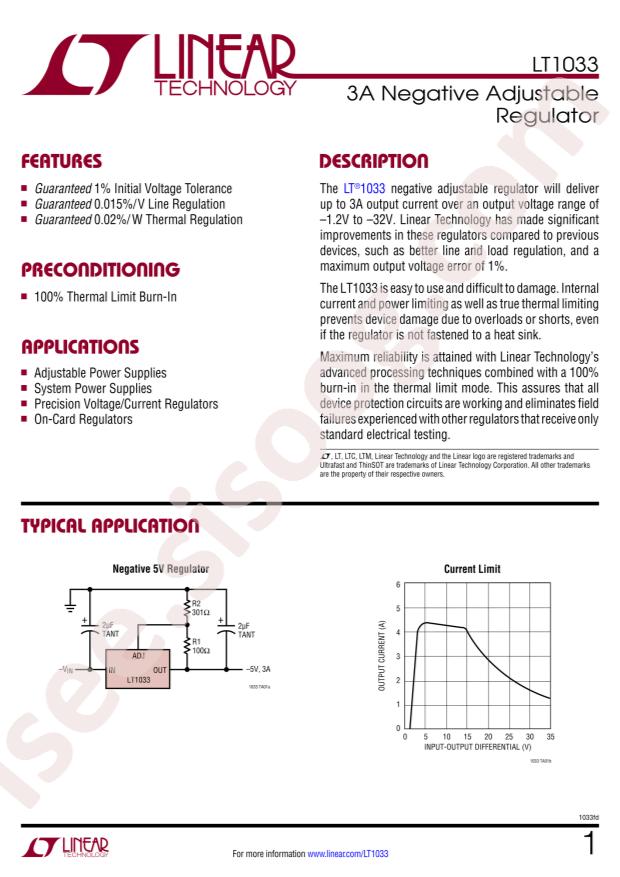

دیتاشیت LT1033CT#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT1033
|
| حجم فایل |
221.943
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices LT1033CT#PBF
-
Output Type:
Adjustable
-
Output Current:
3A
-
Output Voltage:
1.2V~32V
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Operating Temperature:
0°C~+125°C
-
Quiescent Current (Ground Current):
3mA
-
Power Supply Rejection Ratio (PSRR):
77dB@(120Hz)
-
Package:
TO-220
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Negative
-
Number of Regulators:
1
-
Voltage - Input (Max):
-
-
Voltage - Output (Min/Fixed):
-1.2V
-
Voltage - Output (Max):
-32V
-
Voltage Dropout (Max):
-
-
Current - Output:
3A
-
Current - Quiescent (Iq):
3mA
-
Current - Supply (Max):
5mA
-
PSRR:
77dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Over Voltage, Short Circuit
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220-3
-
Base Part Number:
LT1033
-
detail:
Linear Voltage Regulator IC 1 Output 3A TO-220-3
