دیتاشیت LTC3807IFE#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3807 Datasheet |
|---|---|
| حجم فایل | 571.631 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت LTC3807 Datasheet |

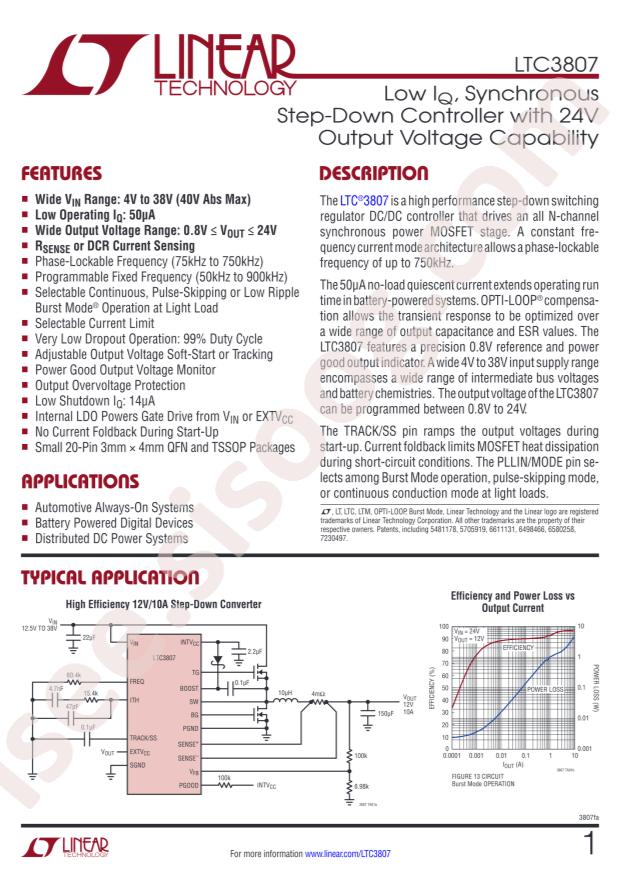

LTC3807 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3807IFE#PBF
- Input Voltage: 4V~38V
- Duty Cycle (Max): 99%
- Number of Outputs: 1
- Switching Frequency: 900kHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: TSSOP-20-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4V ~ 38V
- Frequency - Switching: 50kHz ~ 900kHz
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Soft Start, Tracking
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 20-TSSOP-EP
- Base Part Number: LTC3807
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-TSSOP-EP
