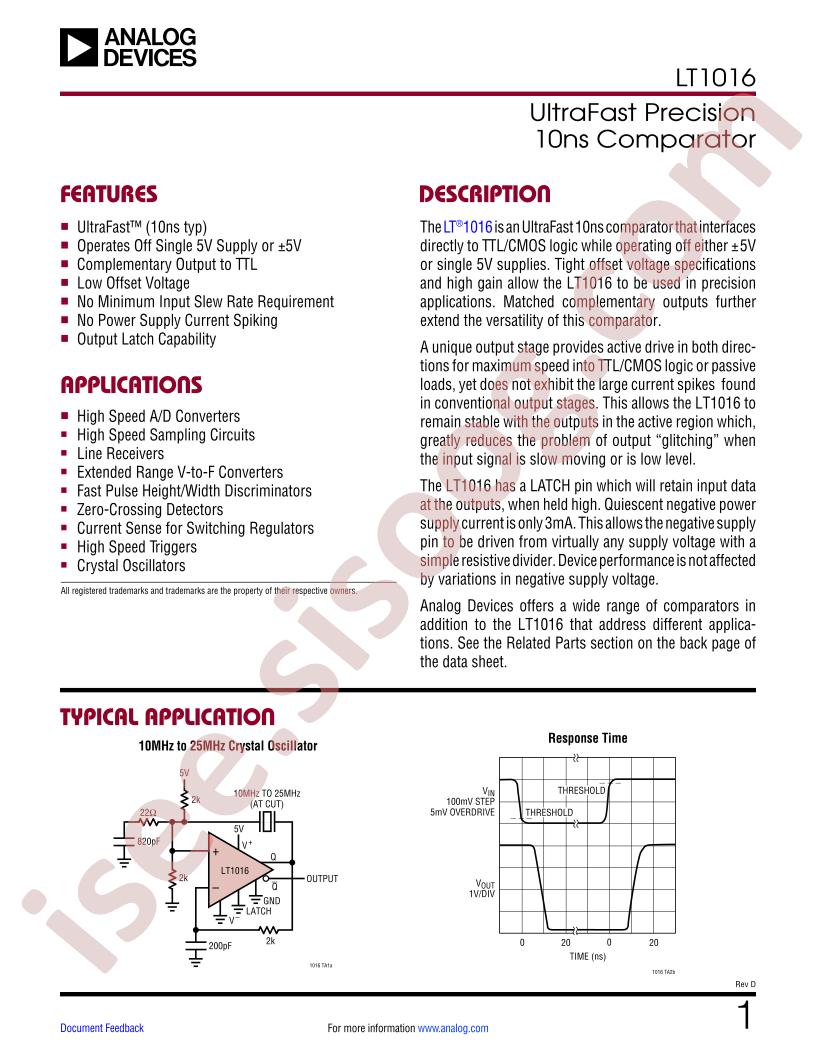

LT1016 Datasheet دیتاشیت

LT1016 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LT1016 Datasheet
حجم فایل 1006.284 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت LT1016 Datasheet

دانلود دیتاشیت

سایر مستندات

LT1016CS8#TRPBF 22 pages

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Analog Devices LT1016CN8#PBF
  • Output Type: CMOS;互补;TTL
  • Supply Voltage: -
  • Number of Elements: -
  • Operating Temperature: 0°C~+70°C
  • Input Bias Current (Ib): 10uA
  • Input Offset Voltage (Vos): 3mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): 96dB
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: UltraFast™
  • Packaging: Tube
  • Part Status: Active
  • Type: with Latch
  • Voltage - Supply, Single/Dual (±): -
  • Voltage - Input Offset (Max): 3mV @ ±5V
  • Current - Input Bias (Max): 10µA @ ±5V
  • Current - Output (Typ): 20mA
  • Current - Quiescent (Max): 35mA
  • CMRR, PSRR (Typ): 96dB CMRR, 75dB PSRR
  • Propagation Delay (Max): 14ns
  • Hysteresis: -
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Mounting Type: Through Hole
  • Supplier Device Package: 8-PDIP
  • Base Part Number: LT1016
  • detail: Comparator with Latch CMOS, Complementary, TTL 8-PDIP
