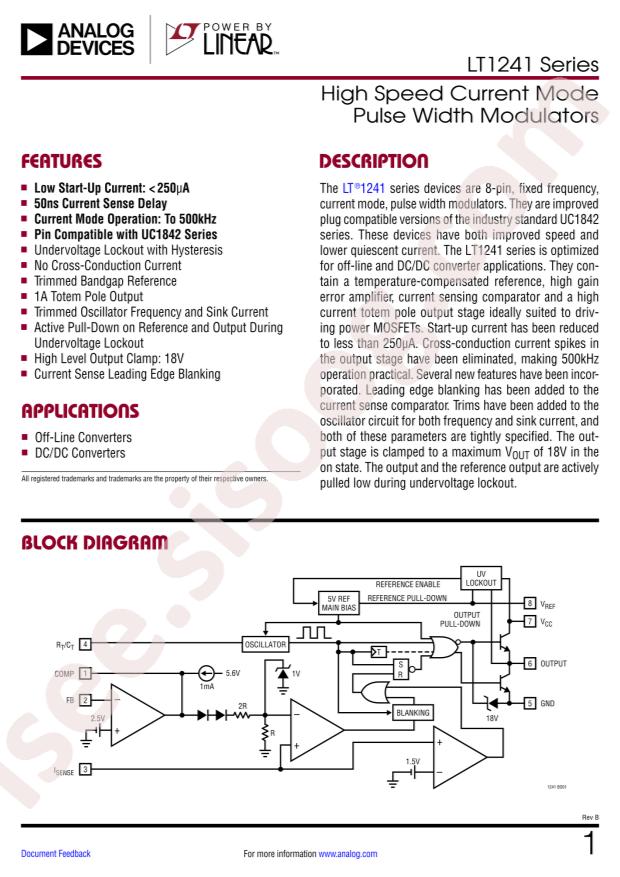

LT1241IS8#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LT1241IS8#PBF |
|---|---|
| حجم فایل | 103.534 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت LT1241IS8#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات
LT1241-45 Datasheet 20 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Step-down
- Datasheet: Analog Devices LT1241IS8#PBF
- Duty Cycle: 48%
- Supply Voltage: 8.2V~25V
- Switching Frequency: 500kHz
- Operating Temperature: -40°C~+100°C@(TA)
- Package: SOIC-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Down
- Output Configuration: Positive, Isolation Capable
- Number of Outputs: 1
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 8.2V ~ 25V
- Frequency - Switching: 500kHz
- Duty Cycle (Max): 48%
- Synchronous Rectifier: No
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Frequency Control
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: LT1241
- detail: Buck Regulator Positive, Isolation Capable Output Step-Down DC-DC Controller IC 8-SOIC
