LT1176CN8-5#PBF دیتاشیت

LT1176CN8-5#PBF

مشخصات دیتاشیت

نام دیتاشیت LT1176CN8-5#PBF
حجم فایل 98.843 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

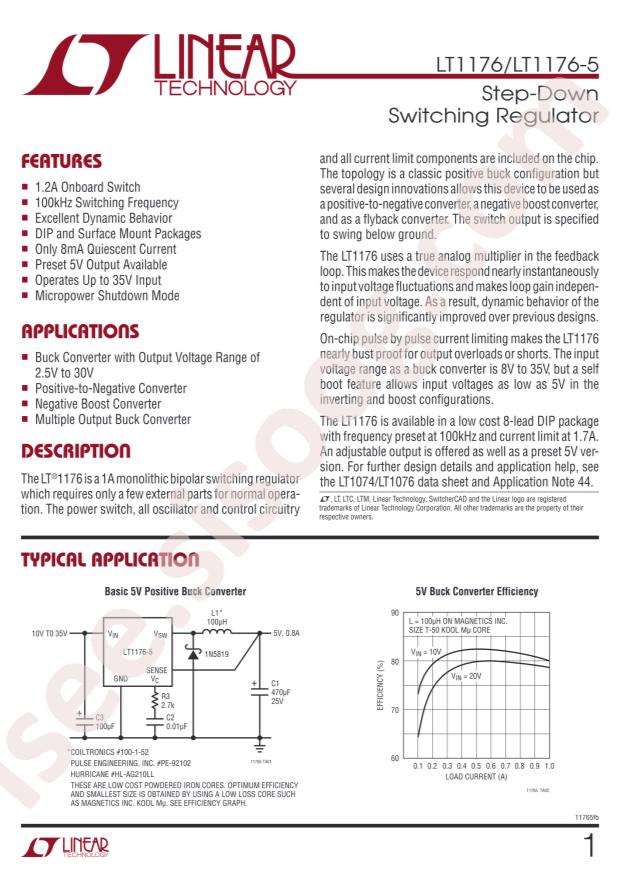

مشاهده دیتاشیت LT1176CN8-5#PBF

دانلود دیتاشیت

سایر مستندات

LT1176/-5 8 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: boost converterType;Step-down type;Buck-boost type
  • Topology: Step-down;Flyback
  • Datasheet: Analog Devices LT1176CN8-5#PBF
  • Output Type: Fixed
  • Input Voltage: 8V~35V
  • Output Voltage: 5V
  • Number of Outputs: 1
  • Switching Frequency: 100kHz
  • Output Current (Max): 1.2A
  • Operating Temperature: 0°C~+70°C@(TA)
  • Synchronous Rectification: NO
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive or Negative
  • Voltage - Input (Min): 8V
  • Voltage - Input (Max): 35V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Current - Output: 1.2A (Switch)
  • Frequency - Switching: 100kHz
  • Synchronous Rectifier: No
  • Mounting Type: Through Hole
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Base Part Number: LT1176
  • detail: Buck, Flyback Switching Regulator IC Positive or Negative Fixed 5V 1 Output 1.2A (Switch) 8-DIP (0.300", 7.62mm)
