دیتاشیت LTC2312CTS8-14#TRMPBF
مشخصات دیتاشیت
نام دیتاشیت | LTC2312-14 |
---|---|
حجم فایل | 635.364 کیلوبایت |
نوع فایل | |
تعداد صفحات | 22 |
دانلود دیتاشیت LTC2312-14 |

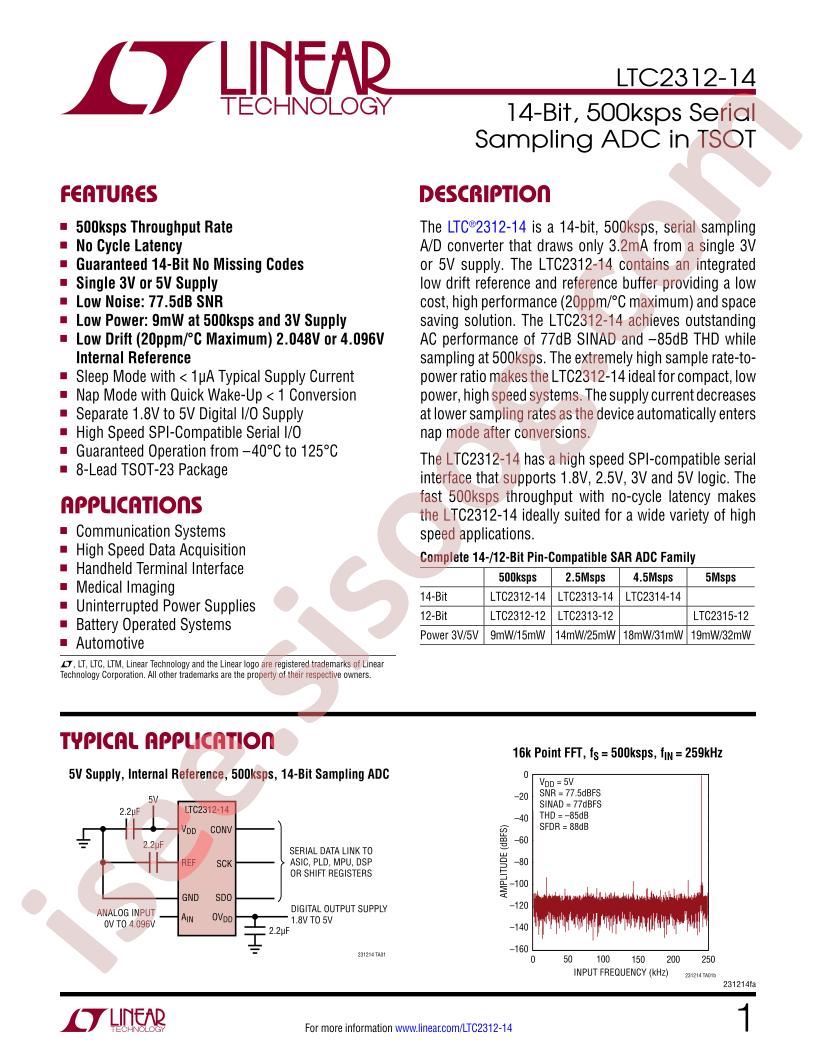

LTC2312-14 Datasheet |
---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices LTC2312CTS8-14#TRMPBF
- Interface: SPI
- resolution: 14Bit
- Supply Voltage: 2.7V~3.6V;5V
- number of channels: 1
- sampling frequency: 500kHz
- Operating Temperature: 0°C~+70°C
- Package: TSOT-23-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Bits: 14
- Sampling Rate (Per Second): 500k
- Number of Inputs: 1
- Input Type: Single Ended
- Data Interface: SPI
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: SAR
- Reference Type: Internal
- Voltage - Supply, Analog: 2.7V ~ 3.6V, 5V
- Voltage - Supply, Digital: 2.7V ~ 3.6V, 5V
- Features: -
- Package / Case: SOT-23-8 Thin, TSOT-23-8
- Supplier Device Package: TSOT-23-8
- Mounting Type: Surface Mount
- Base Part Number: LTC2312
- detail: 14 Bit Analog to Digital Converter 1 Input 1 SAR TSOT-23-8
