LT1158CN#PBF دیتاشیت

LT1158CN#PBF

مشخصات دیتاشیت

نام دیتاشیت LT1158CN#PBF
حجم فایل 102.357 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت LT1158CN#PBF

دانلود دیتاشیت

سایر مستندات

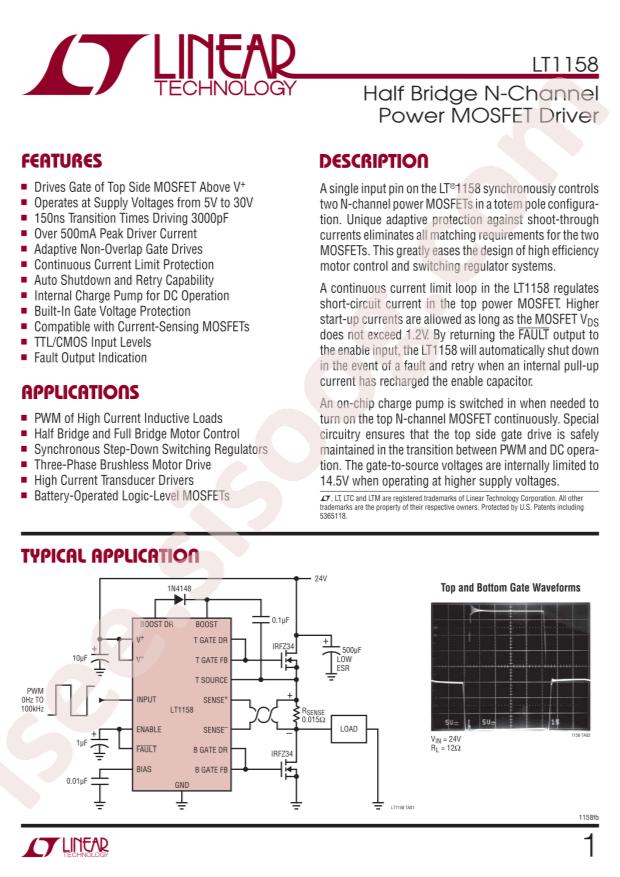

LT1158 Datasheet 22 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices LT1158CN#PBF
  • Fall Time: 120ns
  • Load Type: MOSFET
  • Rise Time: 130ns
  • Supply Voltage: 5V~30V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: 0°C~+125°C@(Tj)
  • Peak Output Current(sink): 500mA
  • Peak Output Current(source): 500mA
  • Package: PDIP-16
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Synchronous
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 5V ~ 30V
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current - Peak Output (Source, Sink): 500mA, 500mA
  • Input Type: Inverting, Non-Inverting
  • High Side Voltage - Max (Bootstrap): 56V
  • Rise / Fall Time (Typ): 130ns, 120ns
  • Mounting Type: Through Hole
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Base Part Number: LT1158
  • detail: Half-Bridge Gate Driver IC Inverting, Non-Inverting 16-PDIP
