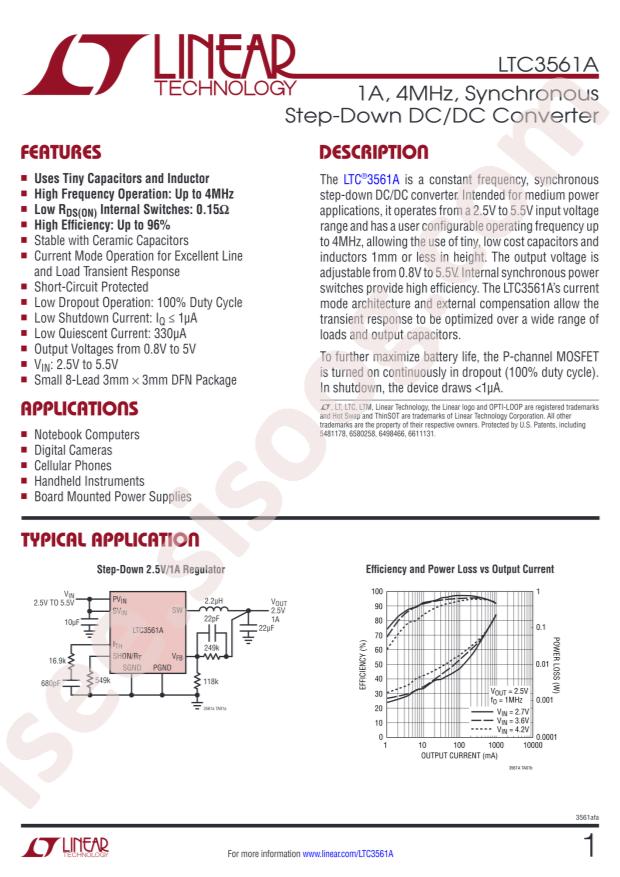

دیتاشیت LTC3561AIDD#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LTC3561A
|
| حجم فایل |
364.368
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices LTC3561AIDD#PBF
-
Output Type:
Adjustable
-
Input Voltage:
2.5V~5.5V
-
Output Voltage:
0.8V~5V
-
Number of Outputs:
1
-
Switching Frequency:
2.5MHz
-
Output Current (Max):
1A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
DFN-8-EP(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
2.5V
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
5V
-
Current - Output:
1A
-
Frequency - Switching:
2.5MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
8-WFDFN Exposed Pad
-
Supplier Device Package:
8-DFN (3x3)
-
Base Part Number:
LTC3561
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 8-WFDFN Exposed Pad
