LT3582EUD-12#PBF دیتاشیت

مشخصات دیتاشیت

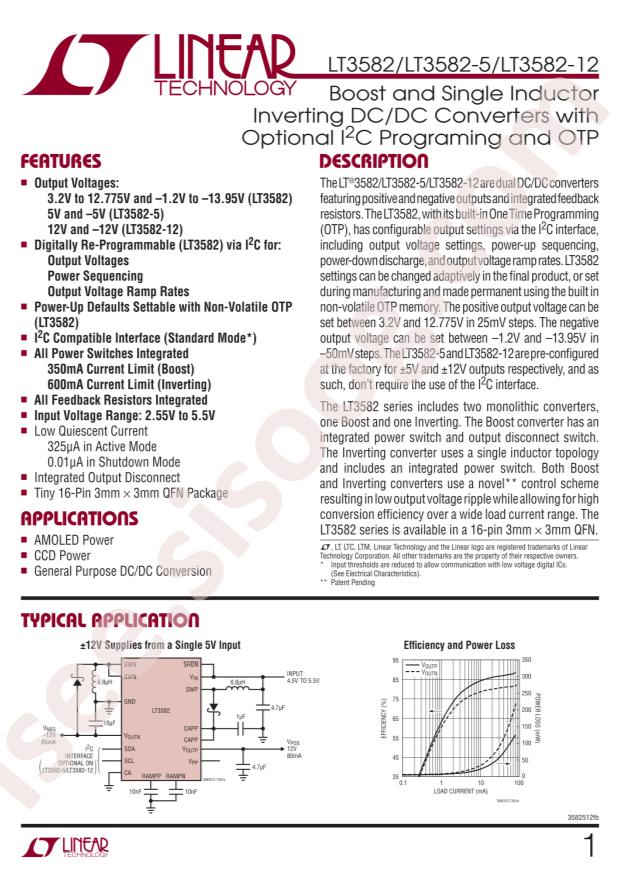

مشاهده دیتاشیت LT3582EUD-12#PBF	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: Boost;Step-down-Boost
Datasheet: Analog Devices LT3582EUD-12#PBF
Output Type: Fixed
Input Voltage: 2.55V~5.5V
Number of Outputs: 2
Switching Frequency: -
Output Current (Max): 285mA;490mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: VQFN-16-EP(3x3)
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive and Negative (Dual Rail)
Voltage - Input (Min): 2.55V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): ±12V
Voltage - Output (Max): -
Current - Output: 285mA (Switch), 490mA (Switch)
Frequency - Switching: -
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 16-WFQFN Exposed Pad
Supplier Device Package: 16-QFN-EP (3x3)
Base Part Number: LT3582
detail: Boost, Buck-Boost Switching Regulator IC Positive and Negative (Dual Rail) Fixed ±12V 2 Output 285mA (Switch), 490mA (Switch) 16-WFQFN Exposed Pad
