- دیتاشیت LT3089EFE#PBF

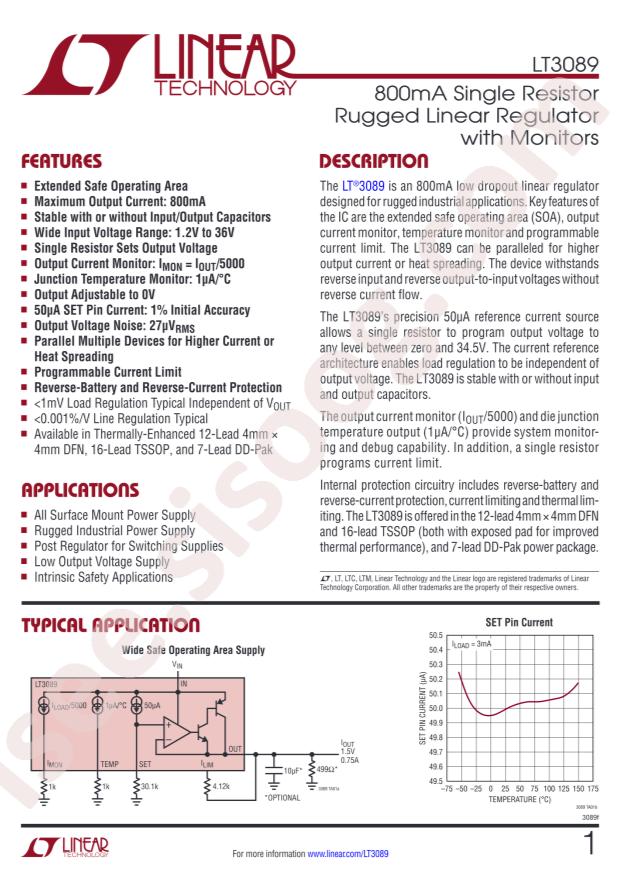

LT3089EFE#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LT3089EFE#PBF |
|---|---|
| حجم فایل | 112.316 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت LT3089EFE#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات
LT3089 Datasheet 28 pages
مشخصات فنی
- RoHS: true
- Feature: Overcurrent Protection;Thermal Protection;Reverse connection protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT3089EFE#PBF
- Output Type: Adjustable
- Output Current: 800mA
- Output Voltage: 0V~34.5V
- Dropout Voltage: 1.65V@(800mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 36V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 50.5uA
- Power Supply Rejection Ratio (PSRR): 90dB@(120Hz)
- Package: HTSSOP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 0V
- Voltage - Output (Max): 34.5V
- Voltage Dropout (Max): 1.65V @ 800mA
- Current - Output: 800mA
- Current - Quiescent (Iq): 50.5µA
- Current - Supply (Max): 3mA
- PSRR: 90dB ~ 20dB (120Hz ~ 1MHz)
- Control Features: Current Limit
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 16-TSSOP-EP
- Base Part Number: LT3089
- detail: Linear Voltage Regulator IC 1 Output 800mA 16-TSSOP-EP
