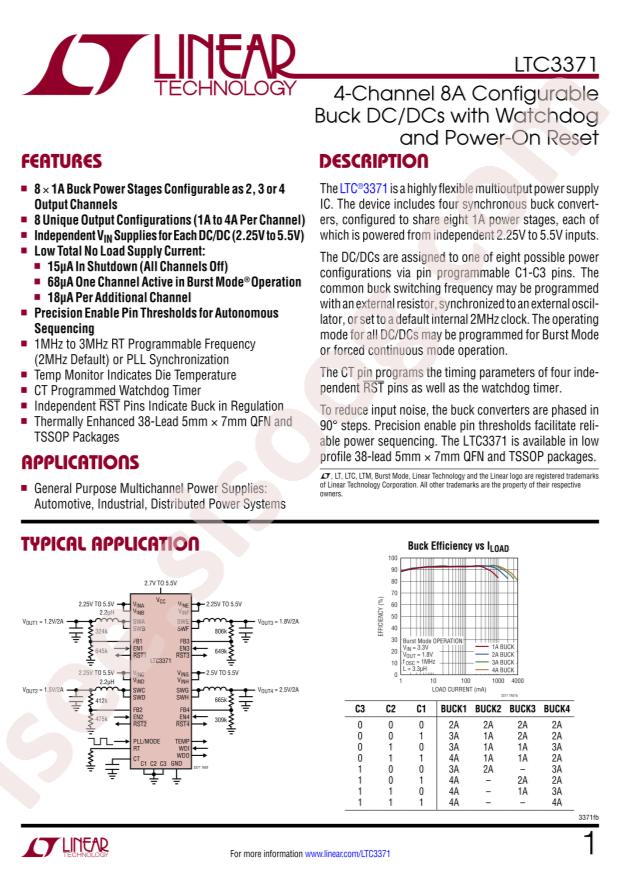

LTC3371EUHF#PBF Datasheet
Datasheet specifications
| Datasheet's name | LTC3371EUHF#PBF |
|---|---|
| File size | 115.365 KB |
| File type | |
| Number of pages | 26 |
Download Datasheet LTC3371EUHF#PBF |
Download Datasheet |
|---|
Other documentations
LTC3371 26 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3371EUHF#PBF
- Output Type: Adjustable
- Input Voltage: 2.7V~5.5V
- Output Voltage: 0.8V~5.5V
- Number of Outputs: 4
- Switching Frequency: 2MHz
- Output Current (Max): 2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: QFN-38-EP(5x7)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 5.5V
- Current - Output: 2A
- Frequency - Switching: 2MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 38-WFQFN Exposed Pad
- Supplier Device Package: 38-QFN (5x7)
- Base Part Number: LTC3371
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 4 Output 2A 38-WFQFN Exposed Pad
