LT1160CS#PBF دیتاشیت

LT1160CS#PBF

مشخصات دیتاشیت

نام دیتاشیت LT1160CS#PBF
حجم فایل 95.578 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت LT1160CS#PBF

دانلود دیتاشیت

سایر مستندات

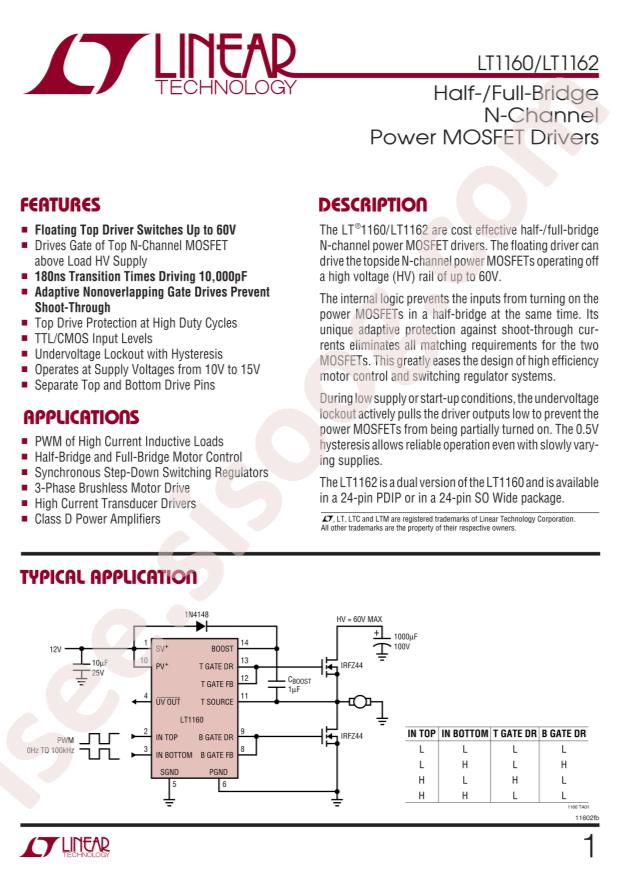

LT1160, LT1162 Datasheet 16 pages

LT1160, LT1162 Spec Notice 1 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices LT1160CS#PBF
  • Fall Time: 60ns
  • Load Type: MOSFET
  • Rise Time: 130ns
  • Supply Voltage: 10V~15V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: 0°C~+125°C@(Tj)
  • Peak Output Current(sink): 1.5A
  • Peak Output Current(source): 1.5A
  • Package: SO-14
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 10V ~ 15V
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current - Peak Output (Source, Sink): 1.5A, 1.5A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 60V
  • Rise / Fall Time (Typ): 130ns, 60ns
  • Mounting Type: Surface Mount
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SOIC
  • Base Part Number: LT1160
  • detail: Half-Bridge Gate Driver IC Non-Inverting 14-SOIC
