LT1941EFE#PBF دیتاشیت

مشخصات دیتاشیت

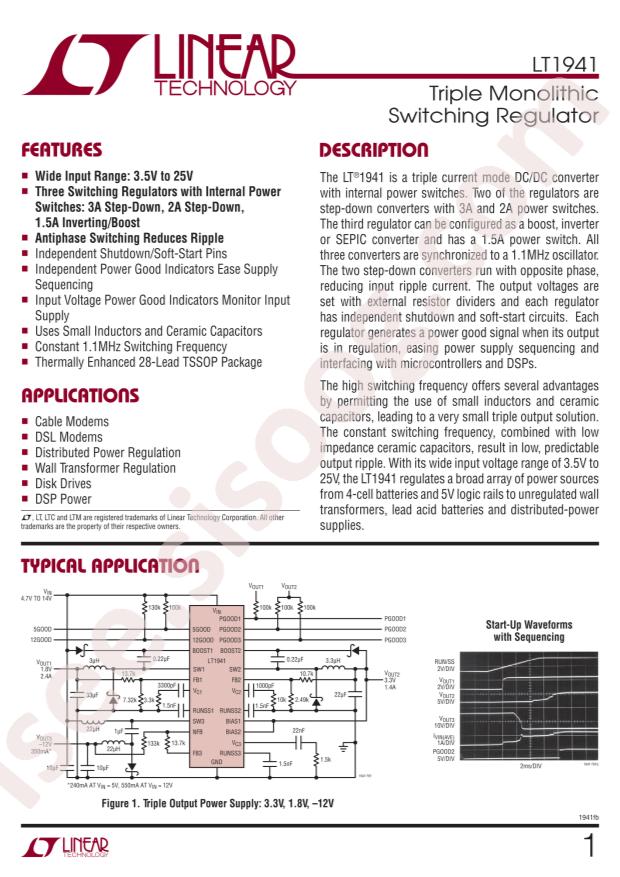

مشاهده دیتاشیت LT1941EFE#PBF	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;SEPIC
Datasheet: Analog Devices LT1941EFE#PBF
Output Type: Adjustable
Input Voltage: 3.5V~25V
Output Voltage: 0.628V
Number of Outputs: 3
Switching Frequency: 1.1MHz
Output Current (Max): 1.5A;2A;3A
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: NO
Package: TSSOP-28-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive or Negative
Voltage - Input (Min): 3.5V
Voltage - Input (Max): 25V
Voltage - Output (Min/Fixed): 0.628V
Voltage - Output (Max): 25V, 40V (Switch)
Current - Output: 1.5A (Switch), 2A (Switch), 3A (Switch)
Frequency - Switching: 1.1MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 28-TSSOP-EP
Base Part Number: LT1941
detail: Buck, Boost, SEPIC Switching Regulator IC Positive or Negative Adjustable 0.628V 3 Output 1.5A (Switch), 2A (Switch), 3A (Switch) 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
