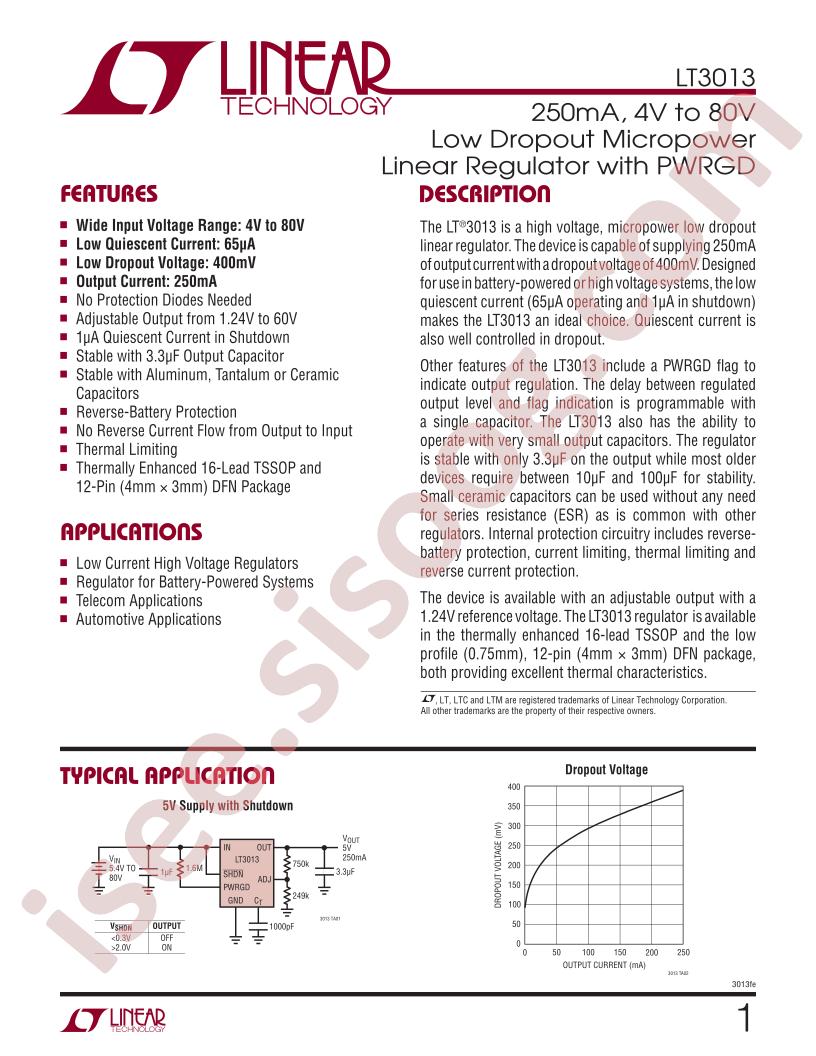

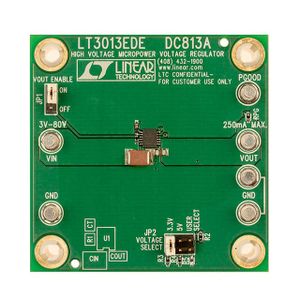

LT3013 Datasheet دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT3013 Datasheet
|
|
حجم فایل
|
232.732
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices LT3013MPFE#TRPBF
-
Output Type:
Adjustable
-
Output Current:
250mA
-
Output Voltage:
1.24V~60V
-
Dropout Voltage:
0.62V@(250mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
80V
-
Operating Temperature:
-55°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
120uA
-
Power Supply Rejection Ratio (PSRR):
75dB@(120Hz)
-
Package:
TSSOP-16-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
80V
-
Voltage - Output (Min/Fixed):
1.24V
-
Voltage - Output (Max):
60V
-
Voltage Dropout (Max):
0.62V @ 250mA
-
Current - Output:
250mA
-
Current - Quiescent (Iq):
120µA
-
Current - Supply (Max):
18mA
-
PSRR:
75dB (120Hz)
-
Control Features:
Enable, Frequency Control, Power Good
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Mounting Type:
Surface Mount
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Supplier Device Package:
16-TSSOP
-
Base Part Number:
LT3013
-
detail:
Linear Voltage Regulator IC 1 Output 250mA 16-TSSOP
