- دیتاشیت LT8714EFE#PBF
LT8714EFE#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LT8714EFE#PBF |
|---|---|
| حجم فایل | 102.048 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 36 |
دانلود دیتاشیت LT8714EFE#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات

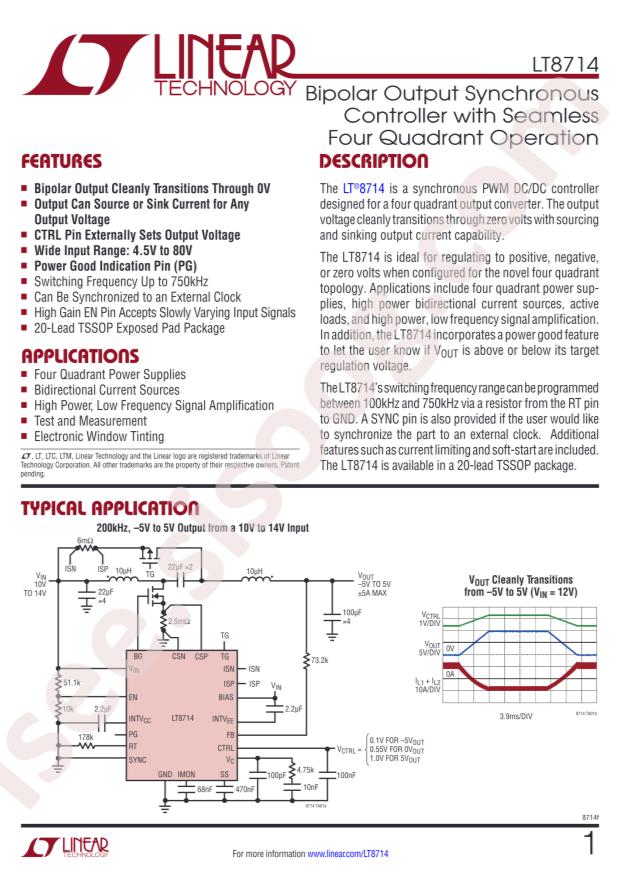

LT8714 Datasheet 36 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Buck-boost type
- Topology: Flyback
- Datasheet: Analog Devices LT8714EFE#PBF
- Input Voltage: 4.5V~80V
- Number of Outputs: 1
- Switching Frequency: 750kHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TSSOP-20-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive or Negative
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 80V
- Frequency - Switching: 100kHz ~ 750kHz
- Duty Cycle (Max): -
- Synchronous Rectifier: No
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 20-TSSOP-EP
- Base Part Number: LT8714
- detail: Flyback Regulator Positive or Negative Output Step-Up/Step-Down DC-DC Controller IC 20-TSSOP-EP
