- دیتاشیت DSPIC33CH256MP506-E/MR
دیتاشیت DSPIC33CH256MP506-E/MR
مشخصات دیتاشیت
| نام دیتاشیت | DSPIC33CH256MP506-E/MR |
|---|---|
| حجم فایل | 88.22 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
DSPIC33CH256MP506-E/MR |
دانلود دیتاشیت |
|---|
سایر مستندات
dsPIC33CH512MP508 Family Datasheet 814 pages
dsPIC33CH512MP508 Errata, Clarification 10 pages

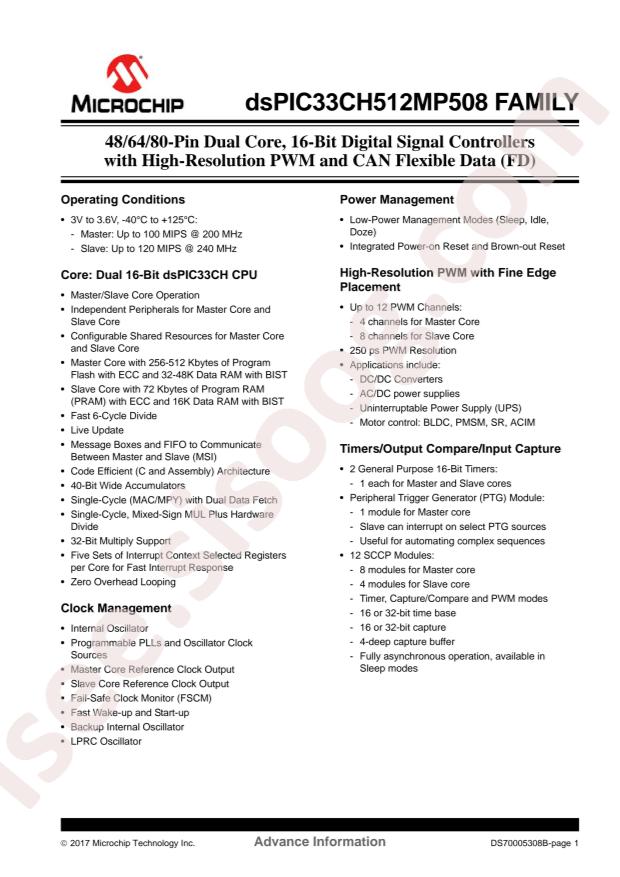

dsPIC33CH512MP508 Family Brief 16 pages
مشخصات فنی
- RoHS: true
- Category: Single Chip Microcomputer/Microcontroller/Digital Signal Processors / Controllers (DSPs/DSCs)
- Datasheet: Microchip Tech DSPIC33CH256MP506-E/MR
- FLASH Size: 328KB
- GPIO Ports Number: 53
- Supply Voltage Range: 3V~3.6V
- Operating Temperature Range: -40°C~+125°C
- Package: QFN-64-EP(9x9)
- Manufacturer: Microchip Tech
- Series: Automotive, AEC-Q100, dsPIC™ 33CH
- Packaging: Tube
- Part Status: Active
- Core Processor: dsPIC
- Core Size: 16-Bit Dual-Core
- Speed: 180MHz, 200MHz
- Connectivity: CANbus, I²C, IrDA, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
- Number of I/O: 53
- Program Memory Size: 328kB (328k x 8)
- Program Memory Type: FLASH, PRAM
- EEPROM Size: -
- RAM Size: 48K x 8
- Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
- Data Converters: A/D 34x12b; D/A 4x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-QFN (9x9)
- detail: dsPIC Automotive, AEC-Q100, dsPIC™ 33CH Microcontroller IC 16-Bit Dual-Core 180MHz, 200MHz 328kB (328k x 8) FLASH, PRAM 64-QFN (9x9)
