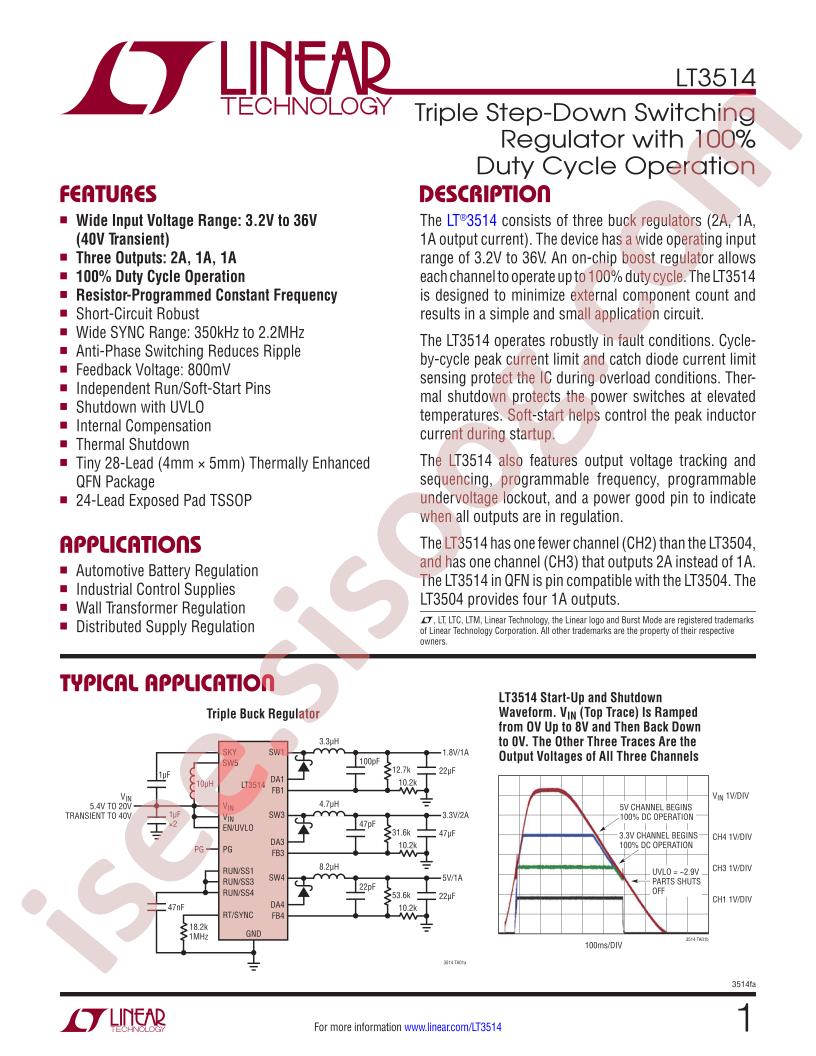

دیتاشیت LT3514IUFD#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT3514
|
| حجم فایل |
482.385
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
26
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices LT3514IUFD#PBF
-
Output Type:
Adjustable
-
Input Voltage:
3.2V~36V
-
Output Voltage:
0.8V~36V
-
Number of Outputs:
3
-
Switching Frequency:
2.1MHz
-
Output Current (Max):
2A;1A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
QFN-28-EP(4x5)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
3.2V
-
Voltage - Input (Max):
36V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
36V
-
Current - Output:
2A, 1A
-
Frequency - Switching:
270kHz ~ 2.1MHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
28-WFQFN Exposed Pad
-
Supplier Device Package:
28-QFN (4x5)
-
Base Part Number:
LT3514
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 3 Output 2A, 1A 28-WFQFN Exposed Pad
