- دیتاشیت LT8315IFE#PBF
LT8315IFE#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LT8315IFE#PBF |
|---|---|
| حجم فایل | 102.848 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LT8315IFE#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات
LT8315 Datasheet 24 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type;Buck-boost type
- Topology: Flyback
- Datasheet: Analog Devices LT8315IFE#PBF
- Output Type: Fixed
- Input Voltage: 18V~560V
- Number of Outputs: 1
- Switching Frequency: 140kHz
- Output Current (Max): 800mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TSSOP-20
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive, Isolation Capable
- Voltage - Input (Min): 18V
- Voltage - Input (Max): 560V
- Voltage - Output (Min/Fixed): -
- Voltage - Output (Max): -
- Current - Output: 800mA
- Frequency - Switching: 220Hz ~ 140kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount

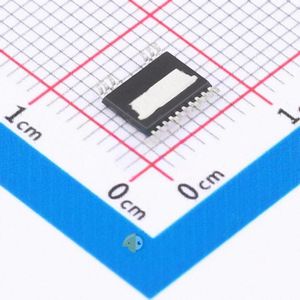

- Package / Case: 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
- Supplier Device Package: 20-TSSOP-EP
- Base Part Number: LT8315
- detail: Flyback Switching Regulator IC Positive, Isolation Capable Fixed 1 Output 800mA 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
