LT3476IUHF#PBF دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LT3476IUHF#PBF	دانلود دیتاشیت

RoHS: true
Category: Nixie Tube Driver/LED Driver/LED Drivers

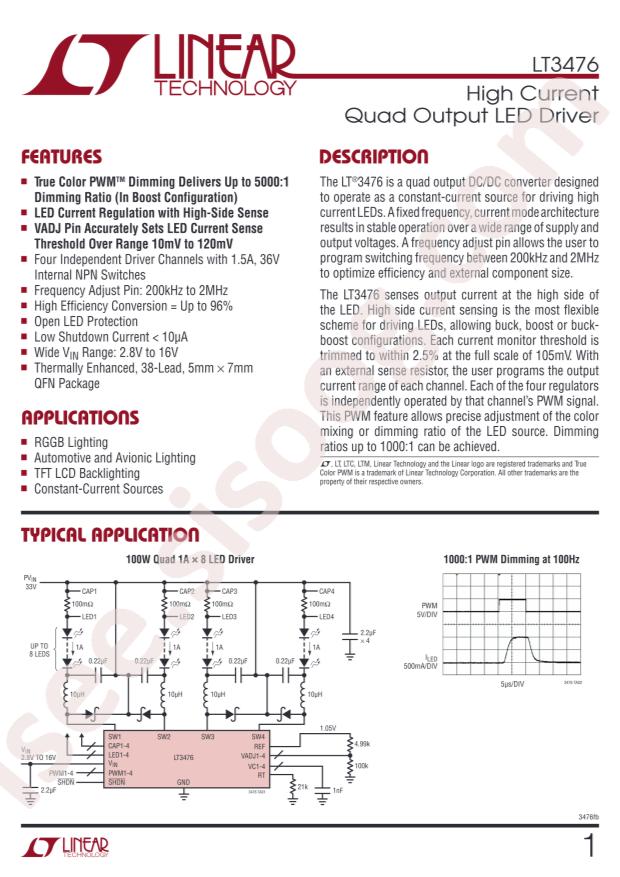

Datasheet: Analog Devices LT3476IUHF#PBF
Package: QFN-38-EP(5x7)
Manufacturer: Analog Devices
Series: -
Packaging: Tube
Part Status: Active
Type: DC DC Regulator
Topology: Step-Down (Buck), Step-Up (Boost)
Internal Switch(s): Yes
Number of Outputs: 4
Voltage - Supply (Min): 2.8V
Voltage - Supply (Max): 16V
Voltage - Output: 2.2V ~ 36V
Current - Output / Channel: 1.5A (Switch)
Frequency: 200kHz ~ 2MHz
Dimming: PWM
Applications: Backlight
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 38-WFQFN Exposed Pad
Supplier Device Package: 38-QFN (5x7)
Base Part Number: LT3476
detail: LED Driver IC 4 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 1.5A (Switch) 38-QFN (5x7)
