دیتاشیت PIC16LC72-04/SP
مشخصات دیتاشیت
| نام دیتاشیت | PIC16C72 Series |
|---|---|
| حجم فایل | 1822.258 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 128 |

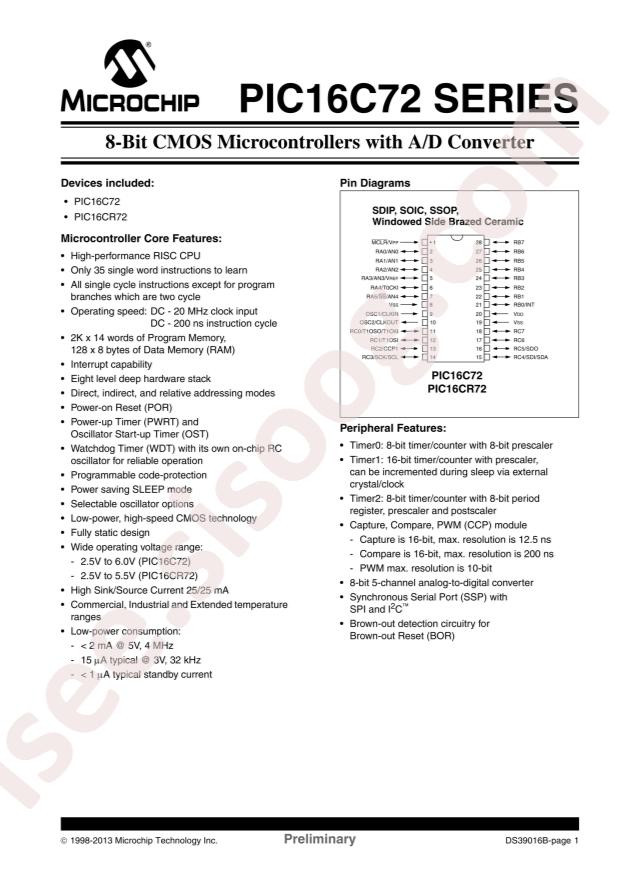

دانلود دیتاشیت PIC16C72 Series |
PIC16C72 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- ADC (Bit): 8bit
- Datasheet: Microchip Tech PIC16LC72-04/SP
- CPU Maximum Speed: 4MHz
- GPIO Ports Number: 22
- Low-Voltage Detect: Yes
- Program Storage Size: 3.5KB
- Operating Voltage Range: 2.5V~6V
- Operating Temperature Range: 0°C~+70°C
- Package: SPDIP-28
- Manufacturer: Microchip Tech
- Series: PIC® 16C
- Packaging: Tube
- Part Status: Active
- Core Processor: PIC
- Core Size: 8-Bit
- Speed: 4MHz
- Connectivity: I²C, SPI
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 22
- Program Memory Size: 3.5KB (2K x 14)
- Program Memory Type: OTP
- EEPROM Size: -
- RAM Size: 128 x 8
- Voltage - Supply (Vcc/Vdd): 2.5V ~ 6V
- Data Converters: A/D 5x8b
- Oscillator Type: External
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.300", 7.62mm)
- Supplier Device Package: 28-SPDIP
- Base Part Number: PIC16LC72
- detail: PIC PIC® 16C Microcontroller IC 8-Bit 4MHz 3.5KB (2K x 14) OTP 28-SPDIP
